V16 Beadlock UTV Wheel Satin Black
Ring Finish: Satin Black
NOTE: All Valor Offroad wheels require one of our installation kits
Choose options
Ring Finish: Satin Black
NOTE: All Valor Offroad wheels require one of our installation kits
Ring Finish: Satin Black
NOTE: All Valor Offroad wheels require one of our installation kits
Developed and engineered specifically for 4x137, 4x156, and 5x4.5, the V16 is available in both 15x7 +35mm and 15x8 -12mm, giving you the option to choose a tight, high-offset, or aggressive -12 mm wide stance.
- Size(s): 15x7 +35mm, 15x8 -12mm
- Engineering: True beadlock
- Fitment: 4x137 for Can-Am fitments like Maverick X3, and Can-Am Defender. 4x156 fitment for Polaris Turbo S, Ranger 1000, General. 5x114.3 bolt pattern; Specifically engineered for Polaris Xpedition and Polaris Ranger XD 1500; also fits Polaris RZR Pro R, RZR Pro S, and many other 5x114.3 UTV platforms.
- Finishes: Satin Gunmetal (bolt-on satin-gunmetal center cap, satin-black V‑Logo) and Satin Black (satin-black bolt-on center cap, satin-charcoal V‑Logo). Each V16 comes fitted with VCAP2 center cap and VBR20 beadlock ring.
- Construction: A356 aluminum with T6 heat treatment for superior strength and durability. 1,400 lb load rating.
- Design: Unique split eight-spoke, exposed-hub design reduces weight.
- Safety & Certification: Engineered to exceed SAE J2530 safety specifications
All our Valor Offroad UTV wheel styles are carefully wrapped in just the right amount of protective material to ensure a safe trip from our warehouse to your door. We are hyper selective in our packaging design and shipping to remove any unnecessary or redundant packaging.
Each wheel purchase comes with wheel and center cap. Each center cap includes all necessary installation hardware and will come pre-installed. See all Valor Offroad center caps.
All Valor Offroad beadlock wheels include all necessary mounting hardware on the bottom of the box. Please ensure you remove all packaging before descarding boxes.
Need lug nuts (installation kit)? Check out our full assortment of UTV wheel installation kits here or check out our fitment guide to figure out what Installation Kit you need.
V16 FINISHES
SATIN GUNMETAL
A blend of dark metallic gray and blue-green undertones inspired the V16 Satin Gunmetal finish—reflective, yet subtle fleck. Gloss black billet beadlock ring. Gloss black cap with charcoal V logo.
SATIN BLACK
The V16 Satin Black finish features black-on-black, with a satin-black wheel and a gloss-black billet beadlock ring. Cap is a matching satin black with an embossed charcoal logo.
V16 Specifications
The V16 beadlock utv wheel comes stock with VCAP-2 bolt-on center cap in satin black. Each V16 includes a billet beadlock ring as well as all necessary Installation hardware in satin black. This wheel looks great on the Tango 33 inch UTV Tires. We also carry a wide selection of ATV tires and UTV Tires.
We take great pride in designing products and finishes that will last you a lifetime of enjoyment. All Valor Offroad products undergo a barrage of brutal safety and quality assurance tests so that no matter where you ride, or whatever Mother Nature throws your way, we've got you covered.
Looking for a custom fitment or custom finish? Check out all of our Valor Offroad center caps.
The V16 is available in 15x7 +35mm (5+2) with fitments for all modern 4-lug and 5-lug UTVs and ATVs (4x137, 4x156, 5x114.3). This includes fitments for Pro R wheels, Yamaha ATV wheels, Kawasaki teryx wheels and tires, Honda Foreman wheels and tires, RZR Pro XP wheels, and CanAm Maverick R wheels.
Not sure whether this wheel will fit your UTV, SxS, or ATV, or unsure what all of this bolt pattern noise is all about? Give us a call and we will make sure you're good to go. After hours? No problem, check out this handy wheel fitment guide that should help address the most common fitments.
We have a blog post dedicated to showing you step by step instructions on how to mount your Valor Offroad beadlock UTV wheels. Check out the post here: How to install UTV beadlock wheels
Before airing your tires up, we recommend torquing each beadlock bolt to 18 ft lbs in a star pattern. Always use a quality torque wrench to ensure proper specification.
Each of our Valor Offroad UTV wheel styles is carefully wrapped in just the right amount of protective material to ensure a safe trip from our warehouse to your door. We are hyper-selective in our packaging design and shipping to remove any unnecessary or redundant packaging.
Unless noted, your cap will match the finish of the wheel selection. Each cap includes all necessary installation hardware and will come pre-installed. See all Valor Offroad center caps.
All Valor Offroad beadlock wheels include all necessary mounting hardware on the bottom of the box. Please ensure you remove all packaging before discarding boxes.
Need lug nuts (installation kit)? Check out our full assortment of UTV wheel installation kits here, or use our fitment guide to find the Installation Kit you need.
Example: V16-1570P3505GM
V16: Style Number
15: Wheel Diameter
70: Wheel Width (7")
P35: Positive (+)35mm Offset
05: Bolt Pattern (5x114.3)
GM: Satin Gunmetal
15" WHEEL SPECS
Size: 15x7
Bolt Pattern: 4x137
Offset: +35mm (5+2)
Hub Bore: 112 mm
Wheel Weight (LBS): 17.35
Max Load (LBS): 1400
Finish: Satin Gunmetal
Ring Finish: Satin Black
Cap: VCAP2
Size: 15x7
Bolt Pattern: 4x156
Offset: +35mm (5+2)
Hub Bore: 132 mm
Wheel Weight (LBS): 17.35
Max Load (LBS): 1400
Finish: Satin Gunmetal
Ring Finish: Satin Black
Cap: VCAP2
Size: 15x7
Bolt Pattern: 5x114.3
Offset: +35mm (5+2)
Hub Bore: 86.1 mm
Wheel Weight (LBS): 17.35
Max Load (LBS): 1400
Finish: Satin Gunmetal
Ring Finish: Satin Black
Cap: VCAP2
Size: 15x7
Bolt Pattern: 4x137
Offset: +35mm (5+2)
Hub Bore: 112 mm
Wheel Weight (LBS): 17.35
Max Load (LBS): 1400
Finish: Satin Black
Ring Finish: Satin Black
Cap: VCAP2
Size: 15x7
Bolt Pattern: 4x156
Offset: +35mm (5+2)
Hub Bore: 132 mm
Wheel Weight (LBS): 17.35
Max Load (LBS): 1400
Finish: Satin Black
Ring Finish: Satin Black
Cap: VCAP2
Size: 15x7
Bolt Pattern: 5x114.3
Offset: +35mm (5+2)
Hub Bore: 86.1 mm
Wheel Weight (LBS): 17.35
Max Load (LBS): 1400
Finish: Satin Black
Ring Finish: Satin Black
Cap: VCAP2
Black out your center caps
Logo Swap Kit
We've got logo swap kits for all wheel styles and all cap styles for those of you wanting the black out look. Super easy to install (less than five minutes for all four caps) and won't break the bank.
Valor Offroad
V16 Beadlock
We’re excited to introduce the V16 Beadlock UTV Wheel from Valor Offroad! Available in new Satin Gunmetal and Satin Black, the V16 is compatible with all 4-lug and 5-lug UTV, SXS, and ATV platforms—including the Polaris RZR, Polaris Xpedition, Polaris Ranger XD 1500, Polaris RZR Pro R, Polaris RZR Pro S, Polaris Pro XP, Can-Am X3, Can-Am Defender, Kawasaki KRX, Kawasaki Teryx H2, Segway Villain, Segway Super Villain, and many more.
With increased demand for a more aggressive wide stance UTV and clearance for upgraded suspension, the V16 is a better solution for anyone considering 10+ inch wide wheels. Thanks to Flow Forming technology, the V16 UTV Wheel weighs just 17.35 lbs. The 15x7 and 15x8 V16 UTV Wheel is part of our growing lightweight beadlock wheel collection, designed to enhance your off-road experience. Get ready for adventure!
WHEEL FINISH
SATIN GUNMETAL
The satin gunmetal paint finish on the Valor Offroad V16 was developed to complement any vehicle colorway. Our gunmetal finish is a unique color that is hard to describe. In some lighting, you'll see a dark, metallic gray with cool bluish undertones, while in other lighting, you may see greenish undertones.

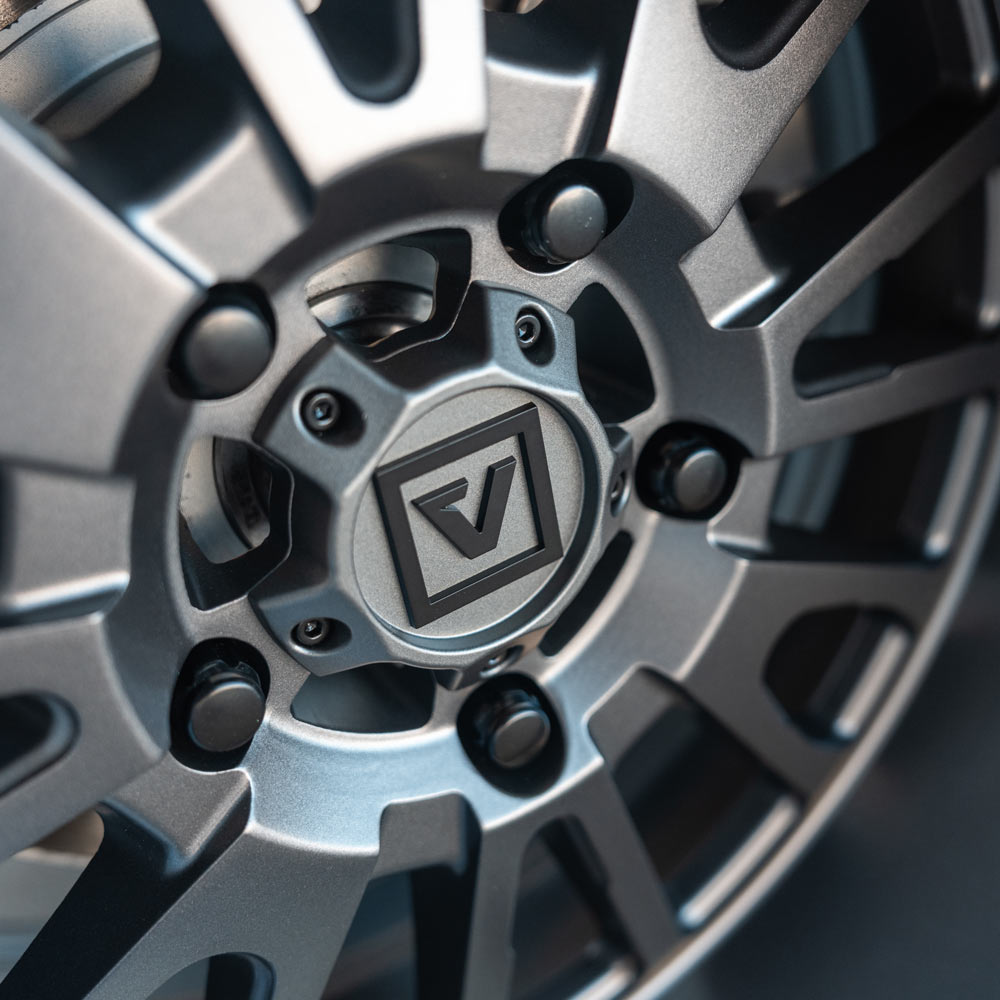

Each satin gunmetal V16 UTV beadlock wheel is finished with a satin black cap, a satin charcoal logo, and a satin black billet beadlock ring. Combine with any of our UTV tires for the ultimate combo.
INDUSTRY LEADING
LIGHTWEIGHT DESIGN
The Valor Offroad V16 was over-engineered to shave unnecessary weight and improve load-bearing strength in all the right places. Ride easy knowing all wheels in the Valor Offroad collection are backed by a limited lifetime structural warranty.
TECHNICAL DETAIL
FInish
The V16 beadlock UTV wheel is available in satin black paint or satin gunmetal paint with black beadlock ring and black hardware.
QUALITY
Manufactured using only A356 aluminum with T6 heat treatment for one super strong wheel. Engineered to exceed SAE 2530 safety specifications.
Design
Timeless split eight-spoke utv wheel design. Billet aluminum beadlock ring increases strength and sheds unnecessary weight.
Safety
Strong 1400 lbs. load rating to ensure you get back to the trailhead or basecamp when you want to. Lifetime limited structural warranty.
