| Make | Model | Bolt Pattern | Lug Nut Spec | OEM Wheel Size | OEM Tire Size | Weight |
|---|---|---|---|---|---|---|
| Segway | UT6 S | 4x110 | M12x1.25* | 14" steel | 27x9-14 front / 27x9-14 rear | 1,476 lb UVW |
| Segway | UT6 P | 4x110 | M12x1.25* | 14" aluminum | 27x9-14 front / 27x9-14 rear | 1,476 lb UVW |
| Segway | UT10 S | 4x110 | M12x1.25* | 14" steel | 27x9-14 front / 27x11-14 rear | 1,851 lb UVW |
| Segway | UT10 P | 4x110 | M12x1.25* | 14" aluminum | 27x9-14 front / 27x11-14 rear | 1,851 lb UVW |
| Segway | UT10 S Crew | 4x110 | M12x1.25* | 14" steel | 27x9-14 front / 27x9-14 rear | 2,050 lb UVW |
| Segway | UT10 P Crew | 4x110 | M12x1.25* | 14" aluminum | 30x10-14 front / 30x10-14 rear | 2,050 lb UVW |
| Segway | Villain SX10 S | 4x110 | M12x1.25 | 14" aluminum beadlock | 29x9-14 front / 27x11-14 rear | 1,896 lb UVW |
| Segway | Villain SX10 P | 4x110 | M12x1.25 | 14" aluminum beadlock | 29x9-14 front / 27x11-14 rear | 1,896 lb UVW |
| Segway | Villain SX10 WP | 4x110 | M12x1.25 | 14" aluminum beadlock | 30x10-14 front / 30x10-14 rear | 1,940 lb UVW |
| Segway | Super Villain SX20T | 5x114.3 | M12x1.25 | 15" aluminum beadlock | 32x10-15 front / 32x10-15 rear | 2,778 lb UVW |

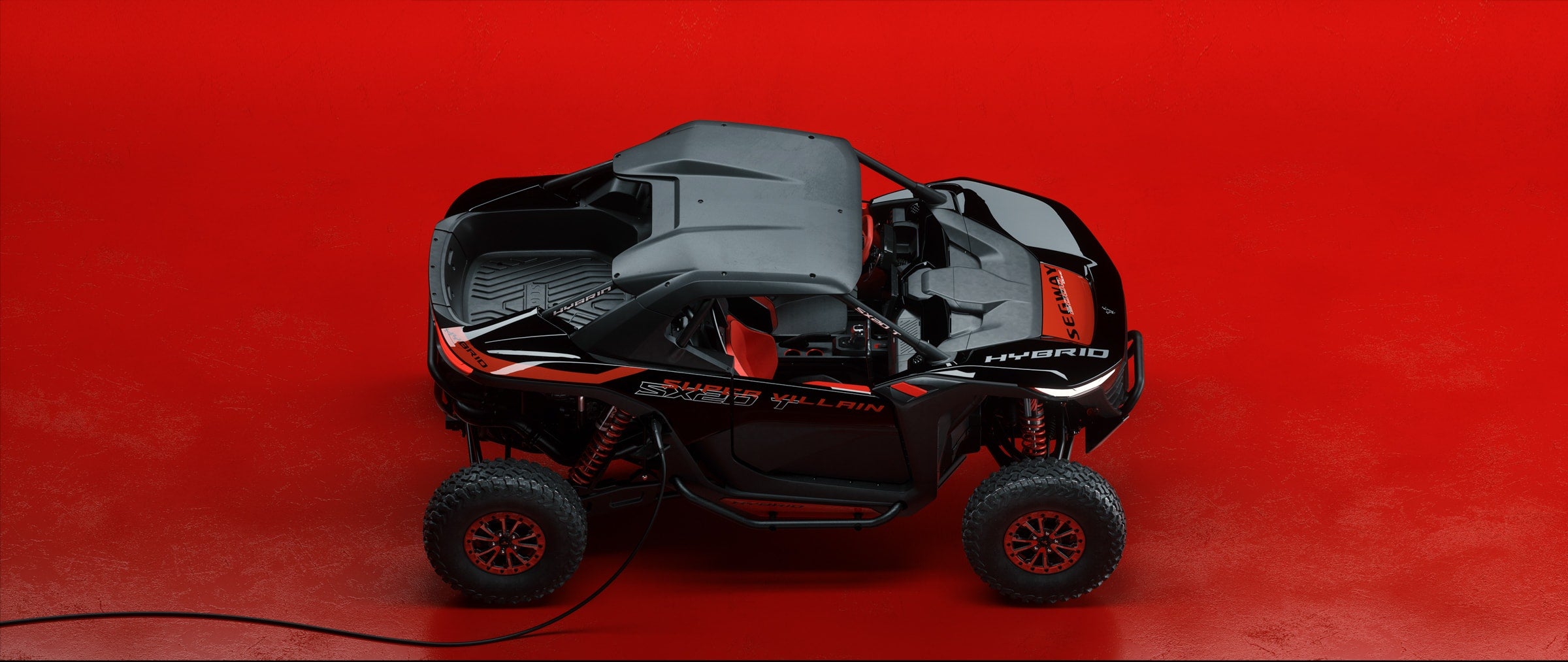

Segway Super Villain
The Segway Super Villain is a hyper-performance sport side-by-side (SxS) designed to compete directly with industry leaders like the Polaris RZR Pro R and Can-Am Maverick R. Introduced as an "industry-first," it features the first factory-produced hybrid powertrain in the utility task vehicle (UTV) market.SuperATV +2Performance and Powertrain. The Super Villain is built on a 2.0L turbocharged 4-cylinder engine platform, moving away from the traditional 1000cc limit, common in the industry. It is available in two distinct versions for 2025:
- Super Villain SX20T (Gas Only): Produces 235 horsepower and 288 lb-ft of torque. It utilizes an automotive-style 6-speed (or 7-speed in some markets) automatic transmission with paddle shifters rather than a standard CVT belt system.
- Super Villain SX20T Hybrid: Combines the 2.0L turbo engine with a 70kW electric motor and a 7.9kWh lithium battery to produce a record-breaking 330 horsepower and 420 lb-ft of torque.

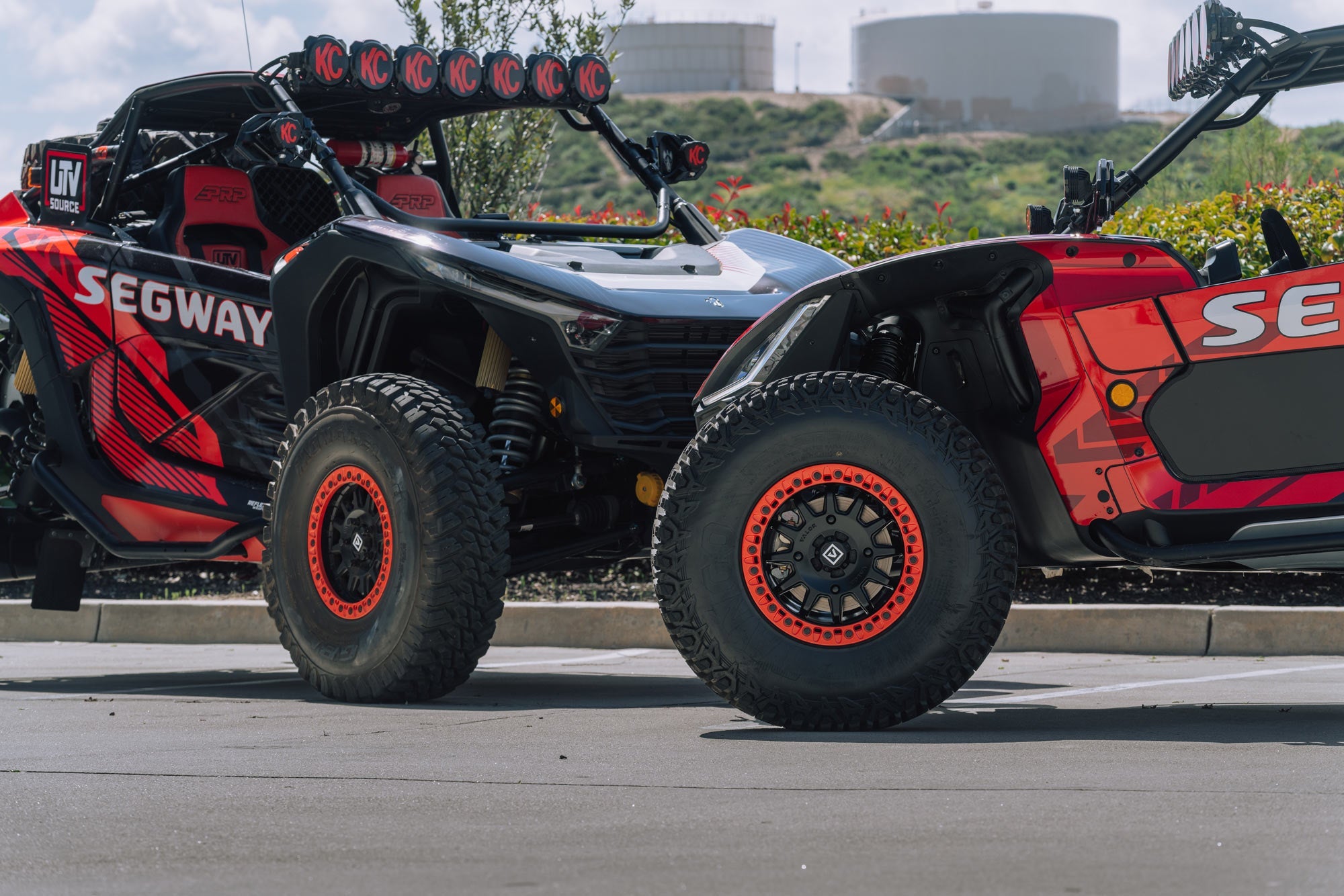

Does my Segway Need Beadlock Wheels?
Not sure if you need beadlock UTV wheels for your Segway? We get it, especially now that beadlocks are all the buzz in our industry. Check out The Source blog post on this exact topic and learn when and why you need UTV beadlock wheels.
SUPER VILLAIN TIRES
