| Make | Model | Bolt Pattern | Lug Nut Spec | OEM Wheel Size | OEM Tire Size | Weight |
|---|---|---|---|---|---|---|
| CFMOTO | UFORCE 600 | 4x110 | M12x1.25 | 12 in cast aluminum | F: 26x8-12 / R: 26x10-12 | 1,345 lb dry |
| CFMOTO | UFORCE 800 XL | 4x110 | M12x1.25 | 14 in cast aluminum | F: 27x9-14 / R: 27x11-14 | 1,629 lb dry |
| CFMOTO | UFORCE 1000 | 4x110 | M12x1.25 | 14 in cast aluminum | F: 27x9-14 / R: 27x11-14 | 1,537 lb dry |
| CFMOTO | UFORCE 1000 XL | 4x110 | M12x1.25 | 14 in cast aluminum | F: 27x9-14 / R: 27x11-14 | 1,853 lb dry |
| CFMOTO | UFORCE U10 Pro | 5x4.5 | M12x1.25 | 14 in cast aluminum | F: 29x9-14 / R: 29x11-14 | 1,742 lb dry |
| CFMOTO | UFORCE U10 Pro Highland | 5x4.5 | M12x1.25 | 14 in cast aluminum | F: 29x9-14 / R: 29x11-14 | 1,949 lb dry |
| CFMOTO | UFORCE U10 XL Pro | 5x4.5 | M12x1.25 | 14 in cast aluminum | F: 29x9-14 / R: 29x11-14 | 2,061 lb dry |
| CFMOTO | UFORCE U10 XL Pro Highland | 5x4.5 | M12x1.25 | 14 in cast aluminum | F: 29x9-14 / R: 29x11-14 | 2,263 lb dry |
| CFMOTO | ZFORCE 800 Trail | 4x110 | M12x1.25 | 14 in cast aluminum | F: 26x8-14 / R: 26x9-14 | 1,290 lb dry |
| CFMOTO | ZFORCE 950 Trail | 4x110 | M12x1.25 | 14 in cast aluminum | F: 26x8-14 / R: 26x9-14 | 1,314 lb dry |
| CFMOTO | ZFORCE 950 Sport | 4x110 | M12x1.25 | 14 in beadlock cast aluminum | F: 27x9-14 / R: 27x11-14 | 1,436 lb dry |
| CFMOTO | ZFORCE 950 Sport-4 | 4x110 | M12x1.25 | 14 in beadlock cast aluminum | F: 27x9-14 / R: 27x11-14 | 1,700 lb dry |
| CFMOTO | ZFORCE Z10 | 5x4.5 | M12x1.25 | 14 in 5-lug wheel | 30x10-14 all around | 1,910 lb dry |
| CFMOTO | ZFORCE Z10-4 | 5x4.5 | M12x1.25 | 14 in 5-lug wheel | 30x10-14 all around | 2,105 lb dry |
CFMoto USA Powersports
Wheels and Tires
We've engineered and developed products specifically for the CFMoto ZForce Z10, Uforce U10, and other CFMoto UTV models. All Valor Offroad wheels, tires, and accessories are trail-tested to ensure they are bombproof.
ZFORCE Z10
The 2026 CFMOTO Z10 (and 4-seater Z10-4) high-performance sport UTV features a 998cc turbocharged 3-cylinder engine, delivering 154 horsepower and 107 lb-ft of torque. This sport UTV machine is designed for aggressive, high-speed riding with multiple ride modes.
- Engine: 998cc Liquid-cooled, DOHC, Turbocharged 3-Cylinder
- Horsepower: 154 HP @ 7,750 rpm
- Torque: 107 lb-ft / 145 Nm @ 6,500–7,000 rpm
- Transmission: OmniDrive™ CVT with P/R/N/H/L
- Power Steering: EPS with multi-mode settings
- Suspension Travel: 20 inches
- Shocks: FOX® QSE 2.5 Piggyback Reservoir with compression adjustment
- Ground Clearance: 14 inches
- Stock Tires: 30-inch ITP Terra Hook
- Dimensions (L x W x H): 129 in. x 68.5 in. x 64 in. (approx)
- Weight: 2,164 lbs (4-seater)
- Fuel Capacity: 10.5 gal

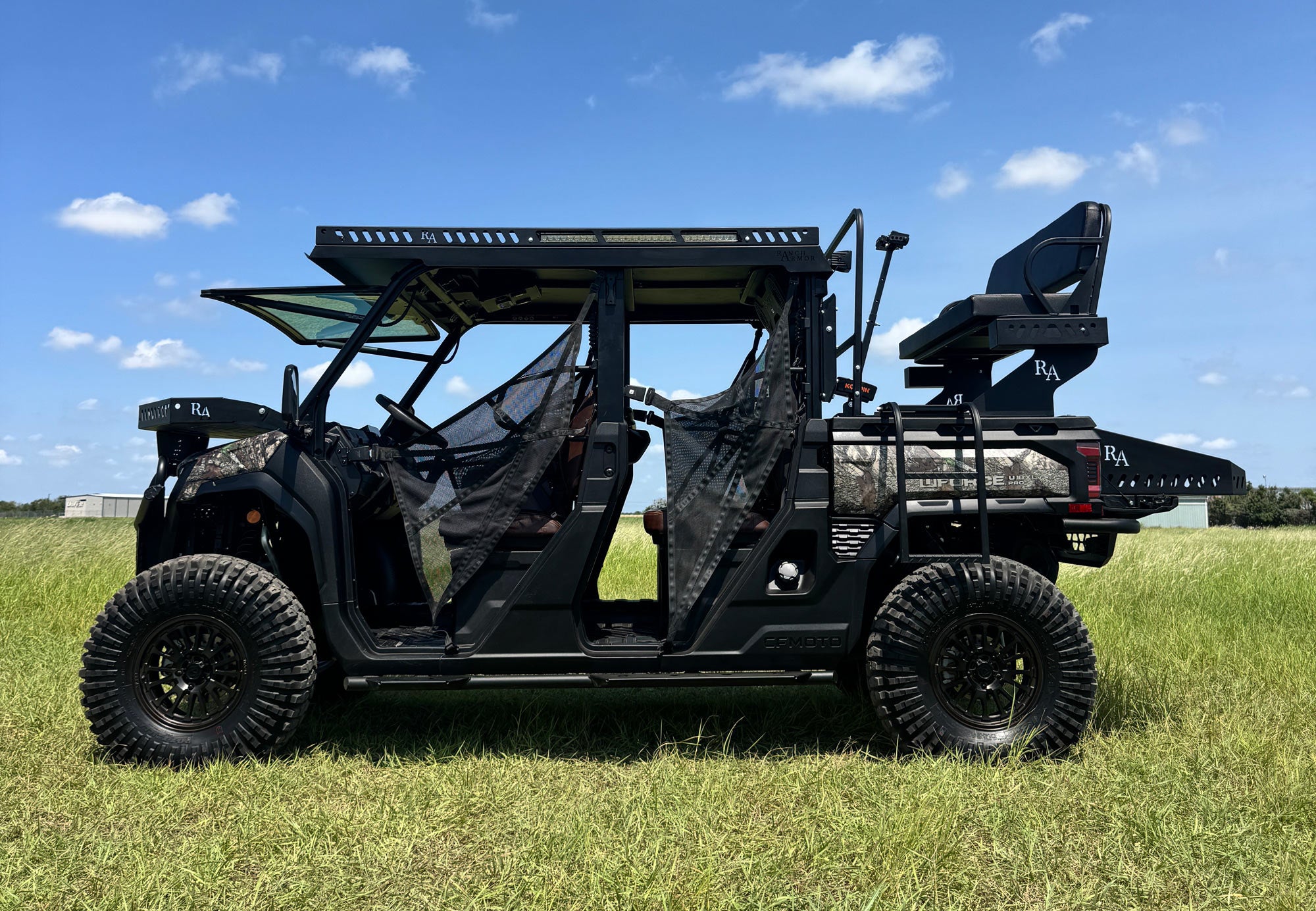

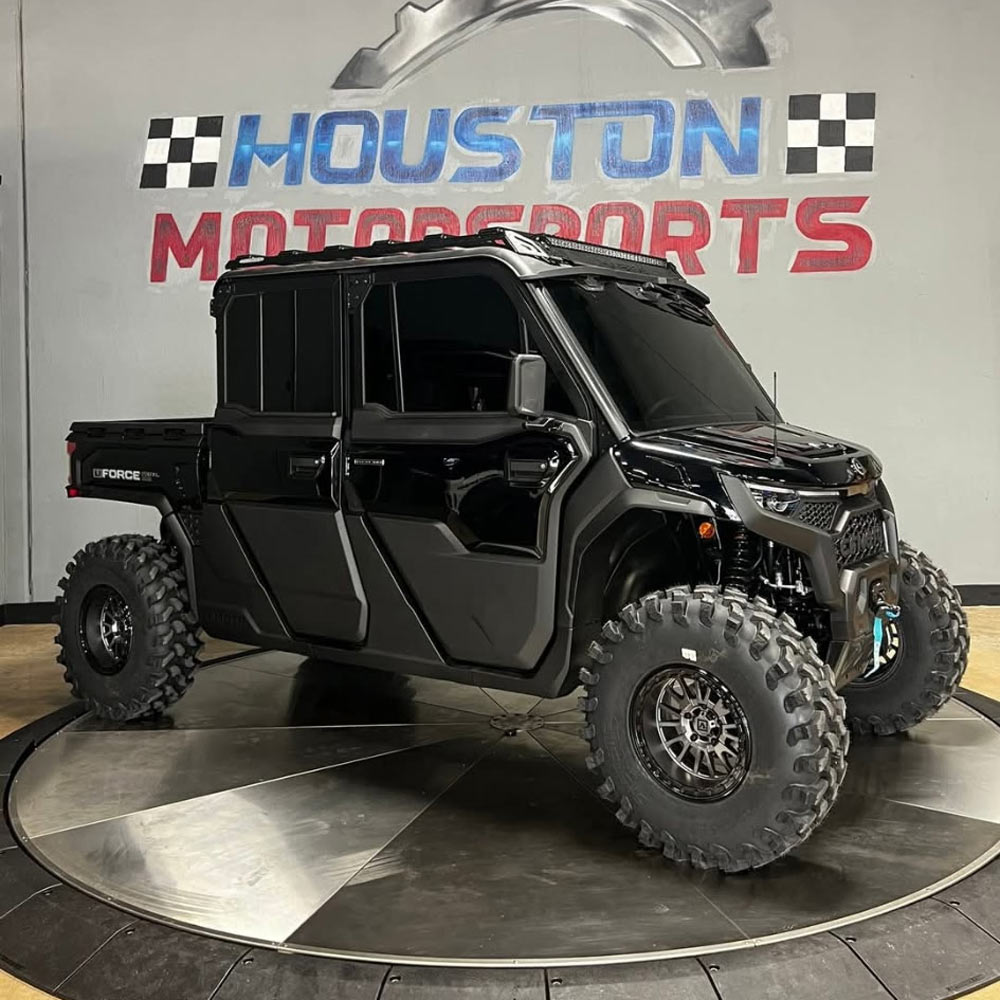

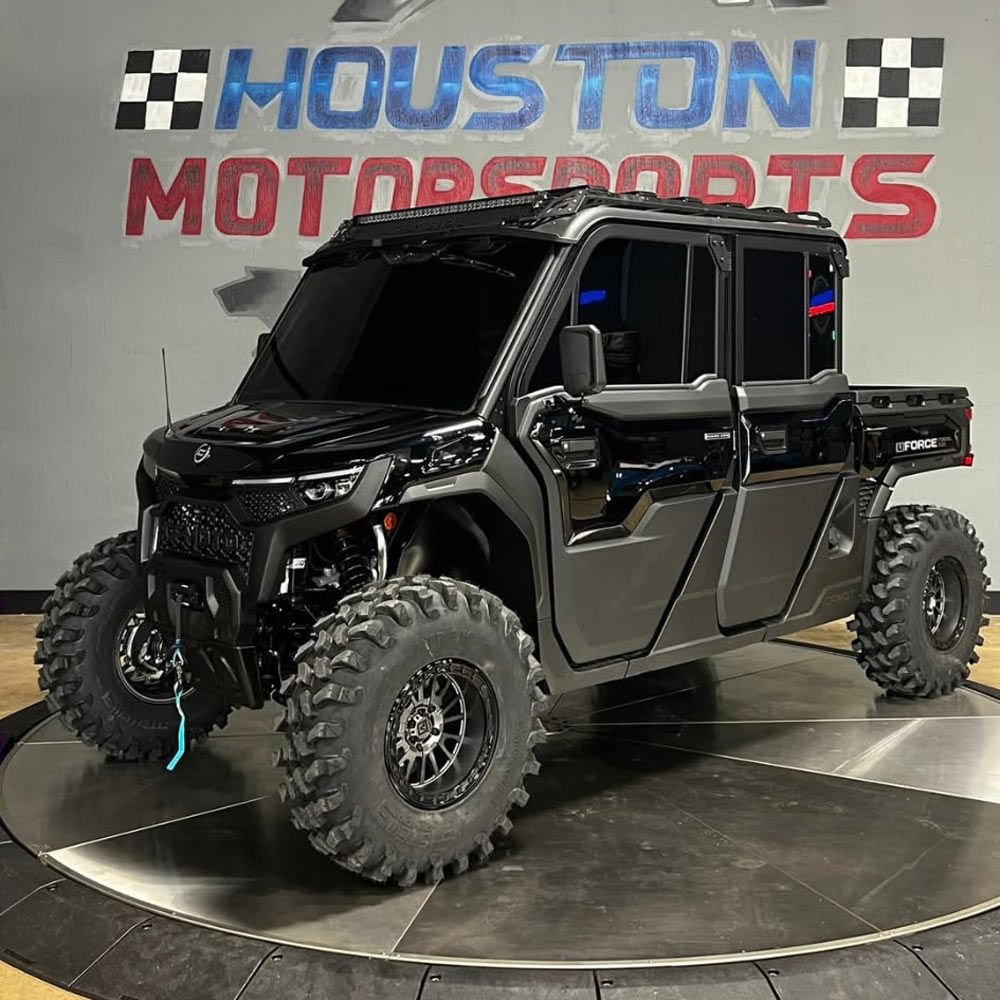

UForce U10
The 2026 CFMOTO UFORCE U10 PRO Highland is a high-performance utility UTV featuring a 998cc triple-cylinder engine (88-90 hp) with VVT, OmniDrive™ CVT, and 4WD lock. Key specs include a 1,000 lb cargo capacity, 2,500 lb towing capacity, 13-inch ground clearance, and 29-inch tires.
- Engine: 998cc liquid-cooled, 4-stroke, DOHC 3-cylinder.
- Horsepower: 88 - 90 hp.
- Torque: 69 lb-ft (\(94.5\text{ Nm}\)) @ 6500 rpm.
- Transmission: OmniDrive™ CVT with P/R/N/H/L.
- Suspension Travel: 11-inches
- Ground Clearance: 13 inches.
- Stock Tires: 29 x 9-14 front / 29 x 11-14 rear (CST).
- Dimensions (L x W x H):
117" x 64" x 77" (U10 Pro), 148" x 64" x 77" (U10 XL Pro). - Wheelbase: 81.1".
- Dry Weight: 1,949 lbs (Pro), 2,061 lbs (XL).
- Cargo Box Capacity: 1,000 lbs (electronic/hydraulic tilt).
- Towing Capacity: 2,500 lbs.
- Fuel Capacity: 11.8 gallons.
Valor Offroad
ATV Tires
Get the most out of your ATV with a set of Valor Offroad ATV Tires. We offer Made in the USA options.
Valor Offroad
4+3 Backspace Wheels
Valor Offroad offers an assortment of wheels for every application, particularly those seeking a specific offset or backspacing. Check out all the 4+3 wheels below.
