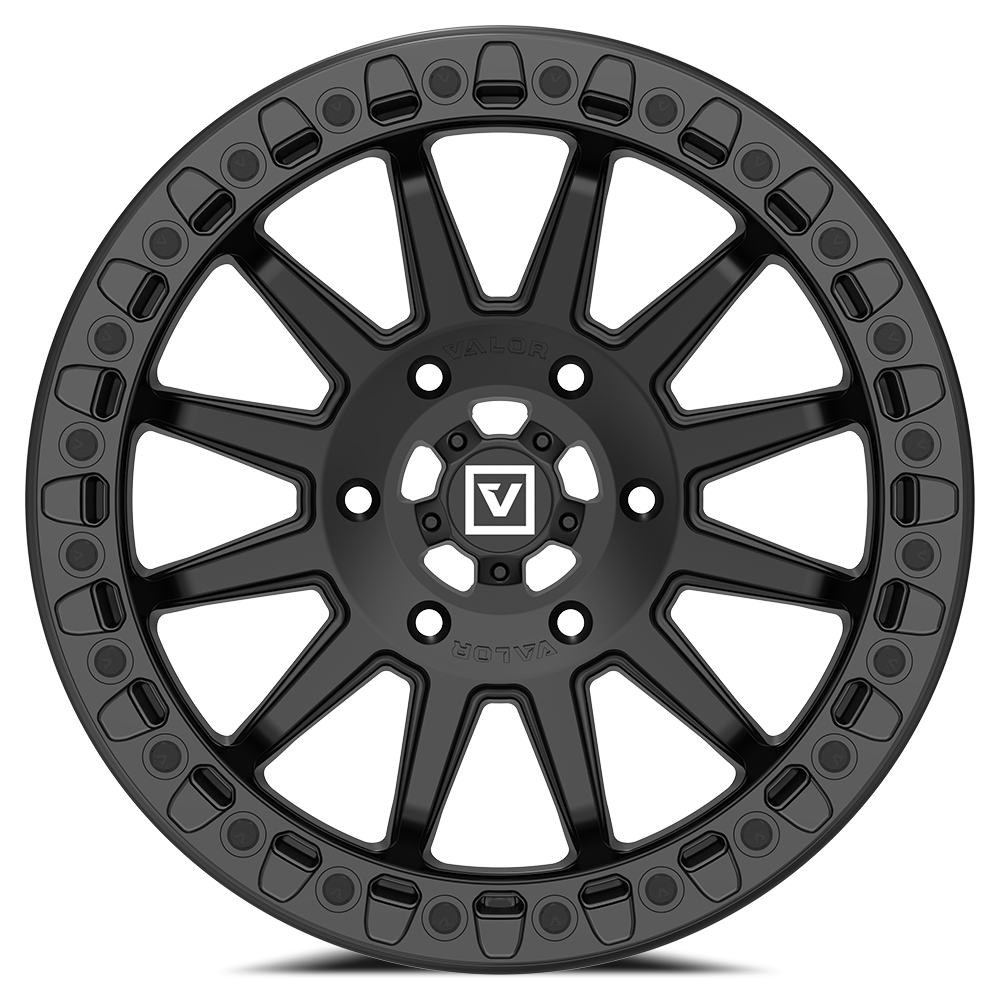

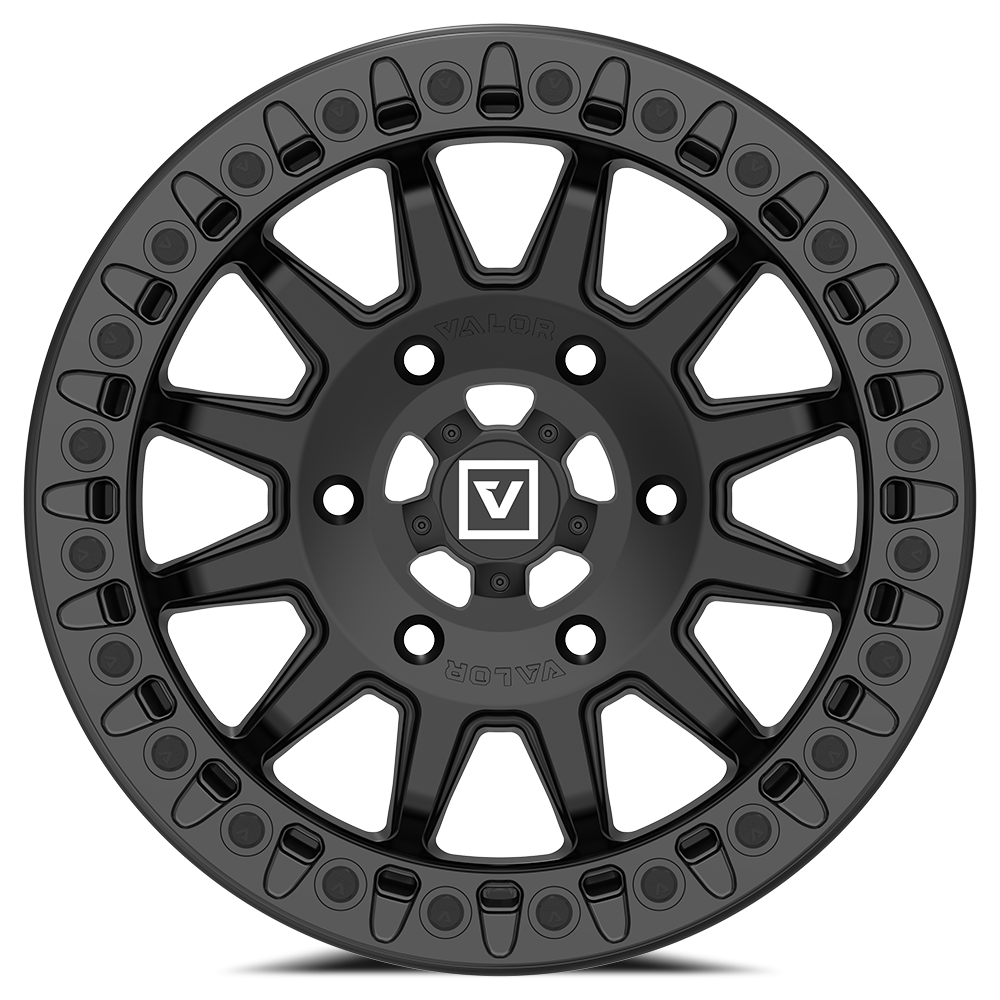

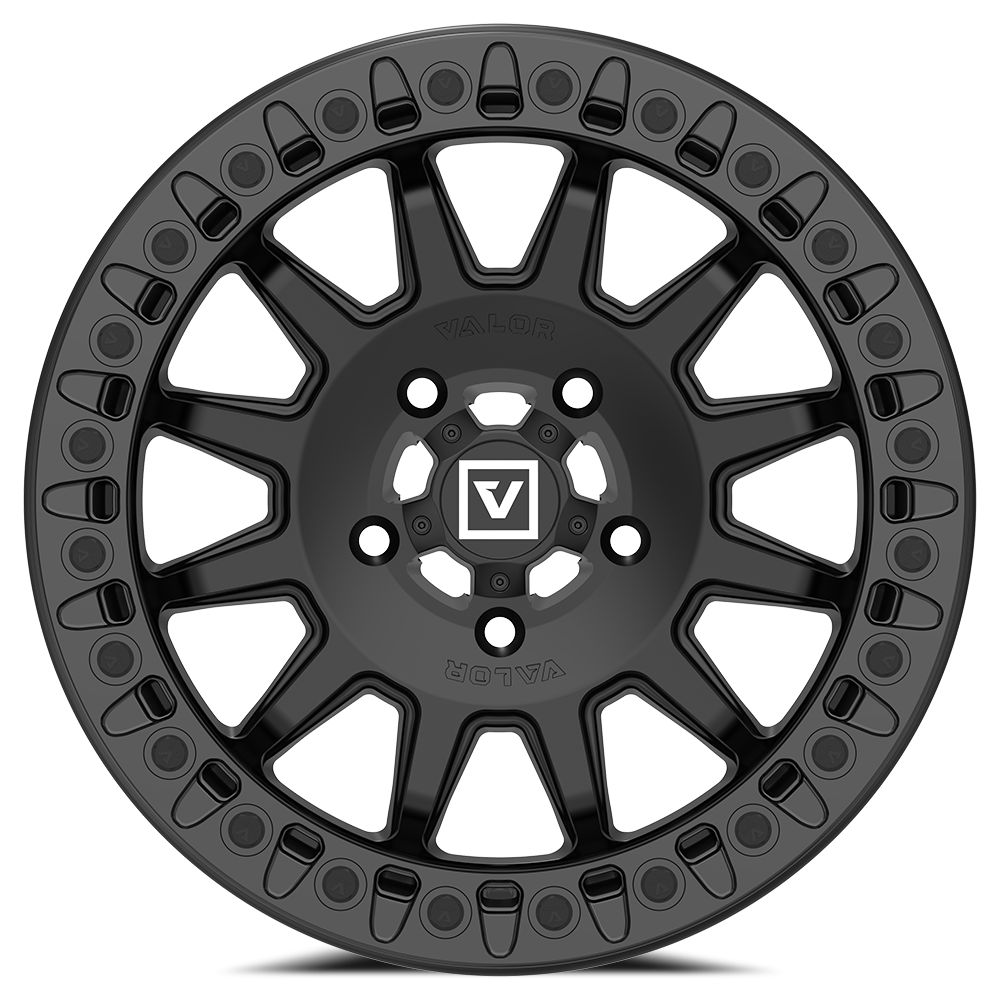

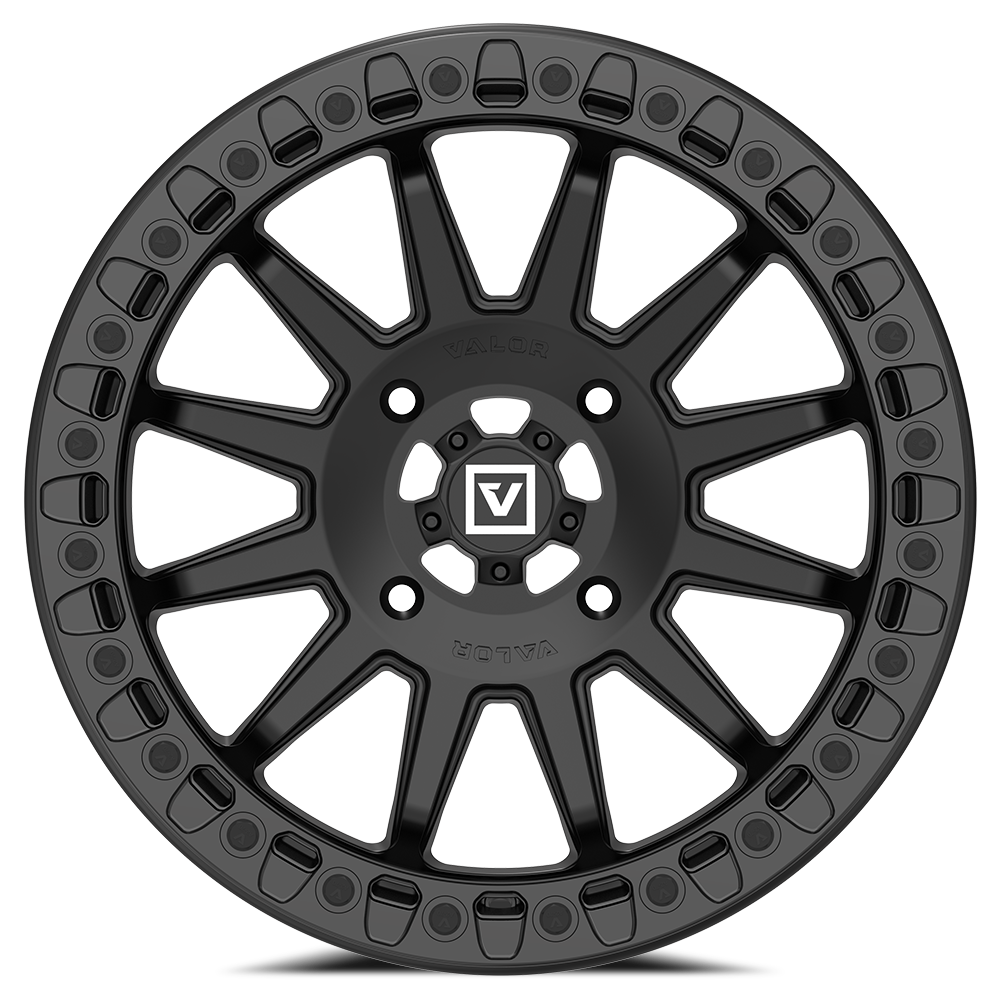

V09 Beadlock UTV Wheel Satin Black
Ring Finish: Gloss Black
NOTE: All Valor Offroad wheels require one of our installation kits
Choose options
Ring Finish: Gloss Black
NOTE: All Valor Offroad wheels require one of our installation kits
Ring Finish: Gloss Black
NOTE: All Valor Offroad wheels require one of our installation kits
What's Included
All our Valor Offroad UTV wheel styles are carefully wrapped in just the right amount of protective material to ensure a safe trip from our warehouse to your door. We are hyper-selective in our packaging design and shipping to remove any unnecessary or redundant packaging.
Each wheel purchase comes with a wheel and a center cap. Each center cap includes all necessary installation hardware and will come pre-installed. See all center caps.
All Valor Offroad beadlock wheels include all necessary beadlock hardware on the bottom of the box. Please ensure you remove all accessories from the packaging.
Need lug nuts (installation kit)? Check out our full assortment of lug nut kits, or use our fitment guide to find the one you need.
V09 FINISHES
BRUSHED CHARCOAL
The V09 Brushed Charcoal finish features textured brushed aluminum with dark charcoal tint. Gloss black billet beadlock ring. Gloss black cap with matching Valor Offroad logo.
SATIN BLACK
The V09 Satin Black finish features black-on-black, with a satin black wheel and a gloss black billet beadlock ring. Cap is a matching satin black with an embossed white Valor Offroad logo.
Raw Machined
Want a forged look without the ridiculous price? The Raw Machined finish was created just for you. Matching metal raw cap and zinc-plated hardware complete this timeless finish.
V09 Detail
The V09 Flow Formed beadlock UTV wheel comes with a billet satin black center cap. Please note that the Satin Black and Brushed Charcoal versions of the V09 come with varying center cap logo finishes. The 15 inch and 17 inch V09 utilizes a billet beadlock ring in gloss black paint finish. All Installation hardware is satin black.
We take a lot of pride in designing products and finishes that will last you a lifetime of enjoyment. All Valor Offroad products undergo a barrage of brutal safety and quality assurance tests so that no matter where you ride, or whatever mother nature throws your way, we've got you covered.
Looking for a custom fitment or custom finish? Check out all of our caps here.
The V09 Flow Formed Beadlock UTV wheel is available in 15x7 and 17x8 with fitments for all modern UTVs and ATVs (4x137, 4x156, 5x114.3, 6x139.7). Looking for 14 inch atv wheels?
Not sure whether this wheel will fit your UTV, SxS or ATV, or unsure what all of this bolt pattern noise is all about? Give us a call and we will make sure you're good to go. After hours? No problem, check out this handy utv fitment guide that should help address most common fitments.
We have a blog post dedicated to showing you step by step instructions on how to mount beadlock UTV wheels. Check out the post here: How to install beadlock
Before airing your tires up, we recommend torquing each beadlock bolt to 18 ft lbs in a star pattern. Always use a quality torque wrench to ensure proper specification.
Example: V09-1570P4037SB
V09: Style Number
15: Wheel Diameter
70: Wheel Width (7")
P40: Positive (+)25mm Offset
37: Bolt Pattern (4x137)
SB: Satin Black Finish
15" WHEEL SPECS
Size: 15x7
Bolt Pattern: 4x137
Offset: +40mm (5+2)
Hub Bore: 112mm
Wheel Weight (LBS): 16.96
Max Load (LBS): 1600
Finish: Satin Black
Ring Finish: Gloss Black
Cap: VCAP2-B
Size: 15x7
Bolt Pattern: 4x156
Offset: +40mm (5+2)
Hub Bore: 132mm
Wheel Weight (LBS): 16.96
Max Load (LBS): 1600
Finish: Satin Black
Ring Finish: Gloss Black
Cap: VCAP2-B
Size: 15x7
Bolt Pattern: 5x114.3 (5x4.5)
Offset: +40mm (5+2)
Hub Bore: 86.1mm
Wheel Weight (LBS): 16.96
Max Load (LBS): 1600
Finish: Satin Black
Ring Finish: Gloss Black
Cap: VCAP2-B
Size: 15x7
Bolt Pattern: 6x139.7 (6x5.5)
Offset: +40mm (5+2)
Hub Bore: 112mm
Wheel Weight (LBS): 16.96
Max Load (LBS): 1600
Finish: Satin Black
Ring Finish: Gloss Black
Cap: VCAP2-B
17" WHEEL SPECS
Size: 17x8
Bolt Pattern: 4x137
Offset: +40mm (6+2)
Wheel Weight (LBS): 20.40
Max Load (LBS): 1600
Finish: Satin Black
Ring Finish: Gloss Black
Cap: VCAP2-B
Size: 17x8
Bolt Pattern: 4x156
Offset: +40mm (6+2)
Wheel Weight (LBS): 20.40
Max Load (LBS): 1600
Finish: Satin Black
Ring Finish: Gloss Black
Cap: VCAP2-B
Size: 17x8
Bolt Pattern: 5x114.3 (5x4.5)
Offset: +40mm (6+2)
Hub Bore: 86.1mm
Wheel Weight (LBS): 20.40
Max Load (LBS): 1600
Finish: Satin Black
Ring Finish: Gloss Black
Cap: VCAP2-B
Size: 17x8
Bolt Pattern: 6x139.7 (6x5.5)
Offset: +40mm (6+2)
Hub Bore: 112mm
Wheel Weight (LBS): 20.40
Max Load (LBS): 1600
Finish: Satin Black
Ring Finish: Gloss Black
Cap: VCAP2-B
Black out your center caps
Logo Swap Kit
We've got logo swap kits for all wheel styles and all cap styles for those of you wanting the blackout look. Super easy to install (less than 5 minutes for all four caps) and won't break the bank.
Valor Offroad
FLOW FORMED
The V09 Flow Formed wheel uses two manufacturing methods: traditional casting and flow forming. This combination results in a professional-grade, lightweight UTV wheel
Compared to conventional casting, flow-formed wheels offer higher precision, a better surface finish, stronger material, and improved grain structure. Flow forming also makes the manufacturing process more efficient.
The V09 weighs 16.96 lbs for the 15x7 size and 20.40 lbs for the 17x8 size, making it one of the lightest aluminum UTV wheels available. It fits all modern UTV vehicles and many more.
WHEEL FINISH
SATIN BLACK
The satin black paint finish on the Valor Offroad V09 Flow Formed UTV wheel was developed to withstand any punishment you can throw at it. Scratches happen (we think of them as badges of honor), but know your paint will hold up under normal wear and tear and with routine care.
Each satin black V09 wheel is finished with a satin black cap featuring a white logo and a gloss black billet beadlock ring. Fitments for CanAm Defender, CanAm X3, CFMoto, 4-lug and 5-lug options.
Valor Offroad
Alpha on V09
Next-level off-roading requires next-generation products. The Alpha UTV tire by Valor Offroad was developed exclusively for the powersports industry. Made in the USA, tested in the Rocky Mountains, learn what makes The Alpha different from your current UTV tires.
THE SOURCE BLOG
What is a flow formed UTV wheel?
Not sure what the hype is behind Flow Formed manufacturing? We break down the science and the benefits behind one of the most exciting techniques used to make lightweight UTV wheels.
TECHNICAL DETAIL
FInish
The V09 beadlock UTV wheel is available in satin black paint or satin brushed charcoal with gloss black beadlock ring and hardware.
QUALITY
Manufactured using only A356 aluminum with T6 heat treatment for one super strong wheel. Engineered to exceed SAE 2530 safety specifications.
Design

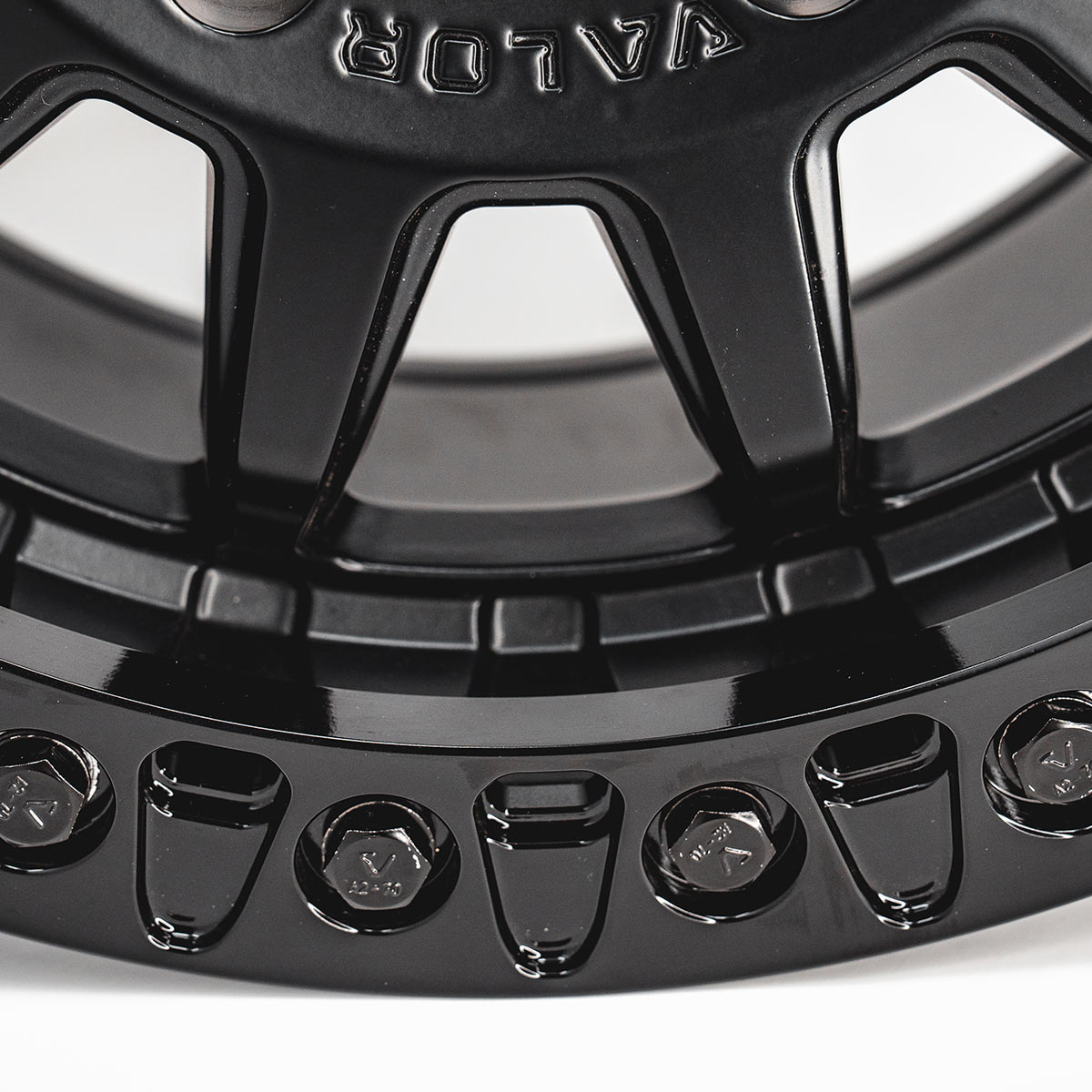

Timeless straight twelve spoke utv wheel design. Billet aluminum beadlock ring increases strength and sheds unnecessary weight.
Safety
Strong 1600 lbs. load rating to ensure you get back to the trailhead or basecamp when you want to. Lifetime limited structural warranty.
BOLT-ON

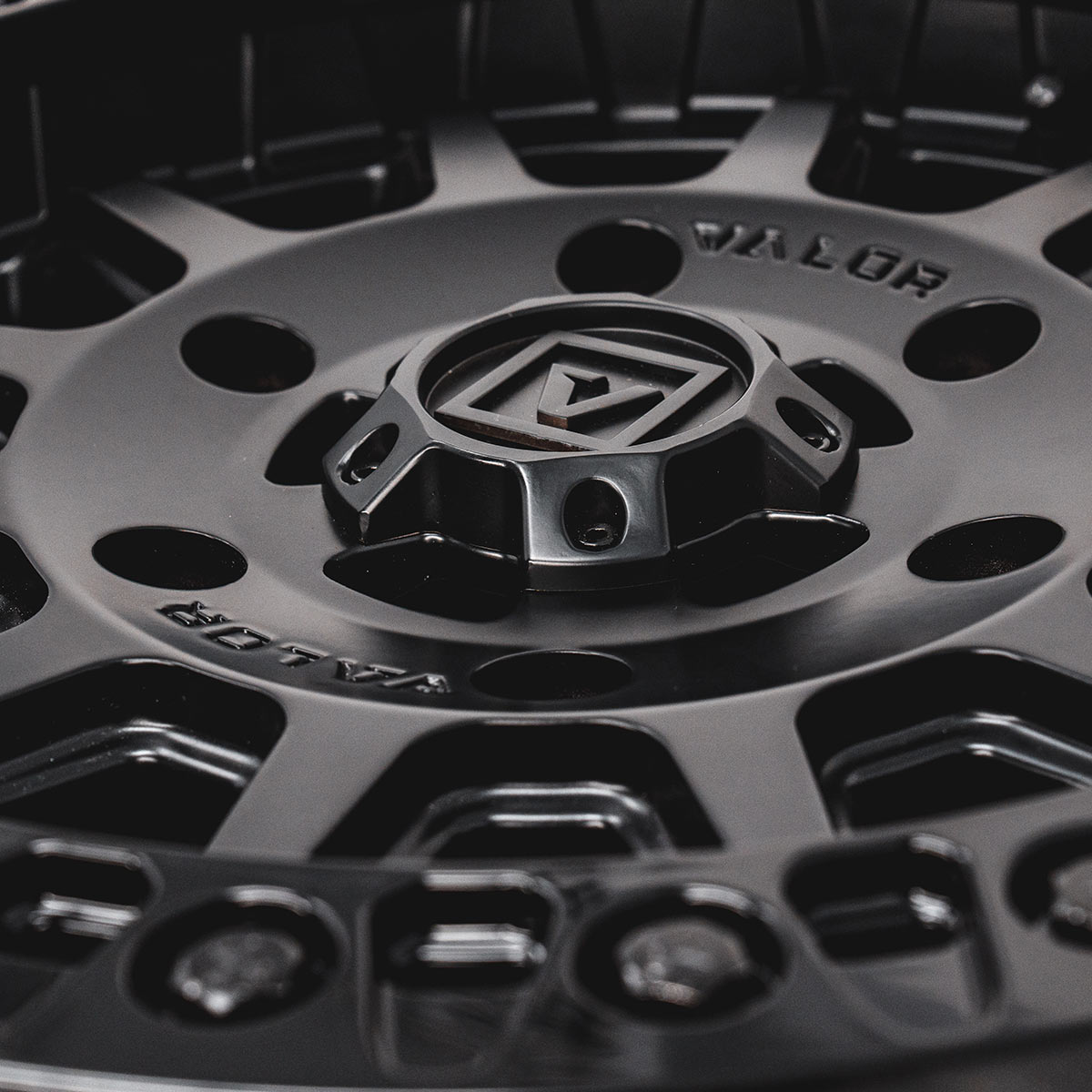

BILLET CAP
The V09 rolls out all of our manufacturing skills, including the billet, all metal VCAP2 cap. Want to customize your wheels with a fresh coat of powder? Now you can include your caps to match.
