Fits All Valor Offroad beadlock wheels

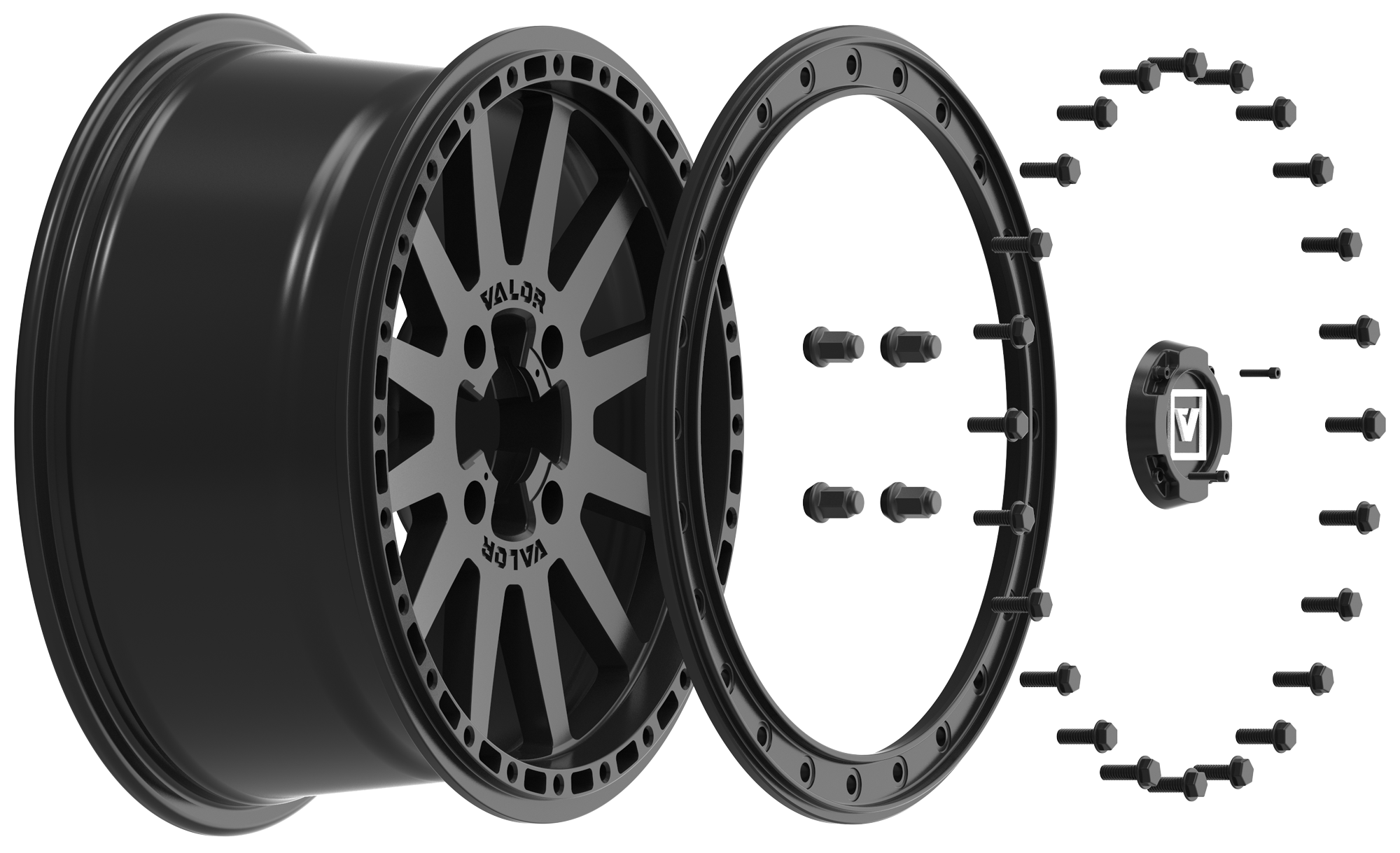

This hardware kit includes all the necessary bolts and washers to assemble (1) single Valor Offroad 24-hole beadlock UTV wheel. If you need hardware replacement for a set of four (4) wheels, you will need four (4) hardware kits. Includes (24) M8x25 mm bolts and (24) washers.
beadlock installation kit
Hardware specs
Made from super-strong 304 stainless steel with an electrophoretic black finish, our 16x1.5mm washer and M8x25mm bolt hardware was engineered to last you a lifetime. The M8 bolt has a 1.25mm thread pitch and 7.760-7.797 pitch diameter. Use a 13mm socket for easy installation.
Not sure how to install your wheels? Check out this how-to install beadlock wheels post from The Source, or head down to your local tire shop or Powersports Dealer for a professional mount.

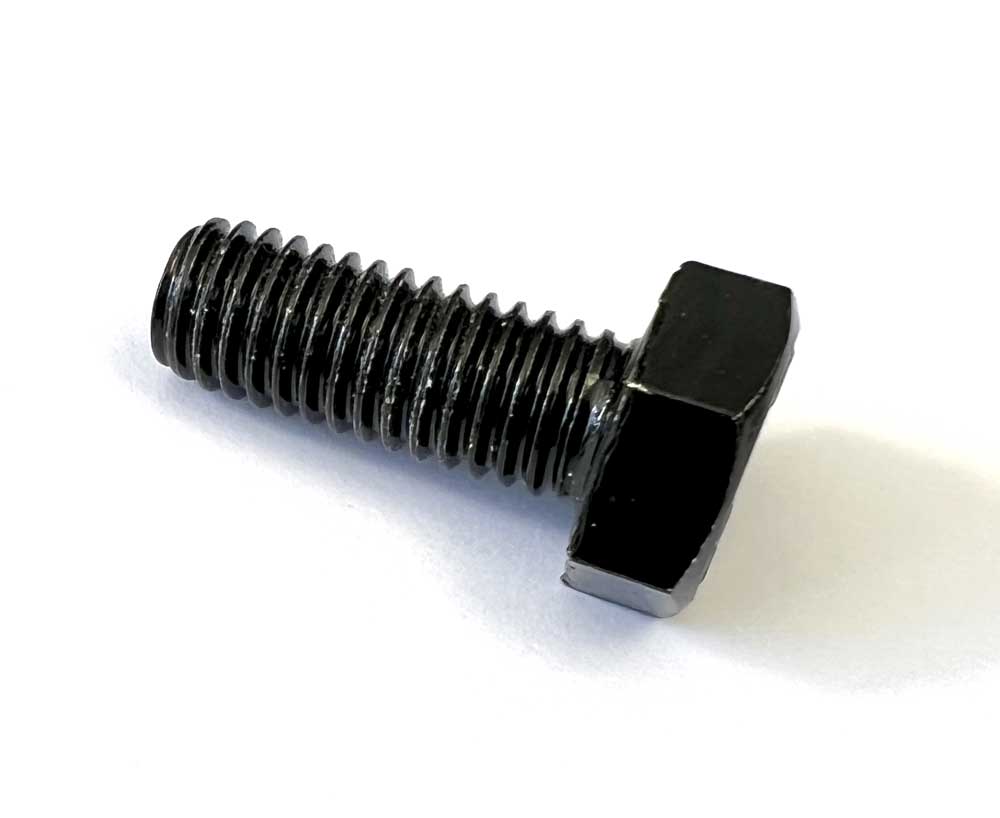

Bolt Specs
Material: 304 Stainless
Finish: Gloss Black
Thread Pitch: 1.25mm
Pitch Diameter: 7.760
Head Width: 13mm
Strength: A2-70

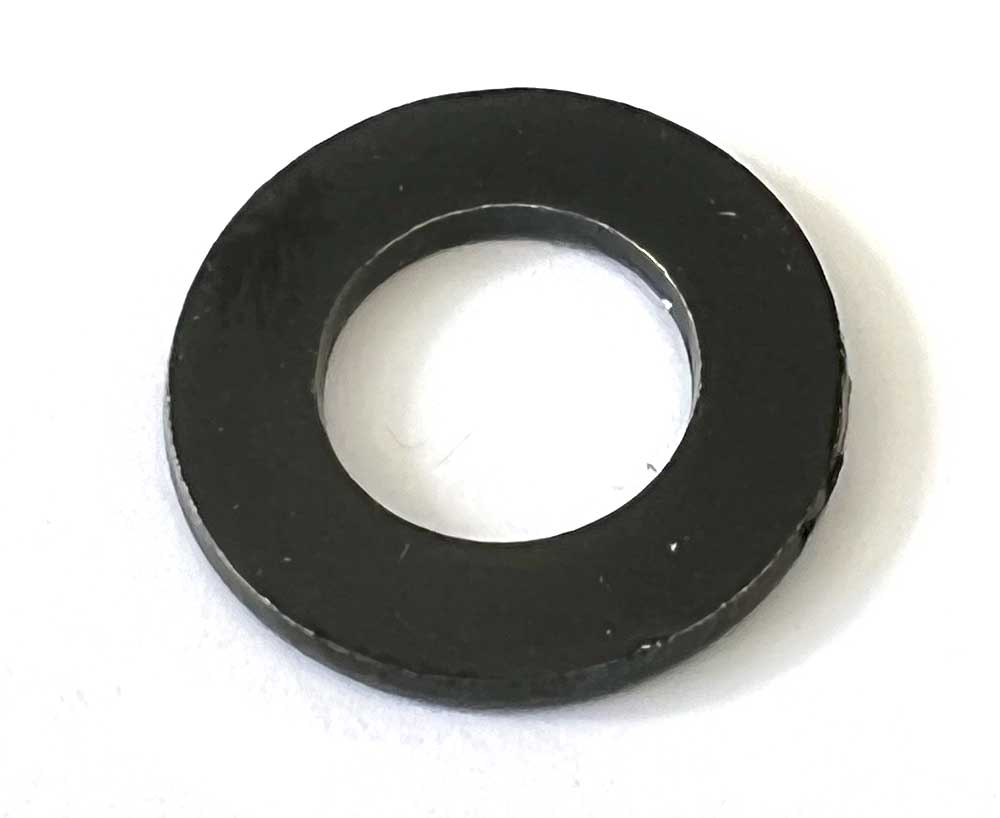

Washer Specs
Material: 304 Stainless
Finish: Gloss Black
Thickness: 1.5mm
Width: 16mm
Strength: A2-70
Beadlock Ring Installation Kit
TRAIL ARMOR
All of our UTV accessories are built with intent. We want them to last for as long as you own them. In the rare event you need to replace your beadlock hardware or you want to spruce up an older set of SXS wheels, this is the kit you need to lock everything down.
NEED NEW RINGS?
