V05 UTV Wheel

Sale price$250.00
1 review
1 review
SKU: V05-1470P3537SB
Size:14x7
Offset:+35mm (5+2)
Bolt pattern:4x137
Quantity:

Help

Not sure what bolt pattern (PCD) you need?
Visit our Fitment Guide

Want to dig deeper into specs?
Valor Wheel Specs

What lug kit (installation kit) do I need?
Install Kit Fitment Guide

What is Offset or Backspacing?
Learn more here

What is the Warranty on Valor Offroad wheels?
Visit our Warranty Page

What is the Return Policy?
Visit our return policy page for more details




Have additional questions?
Email us
Call Us

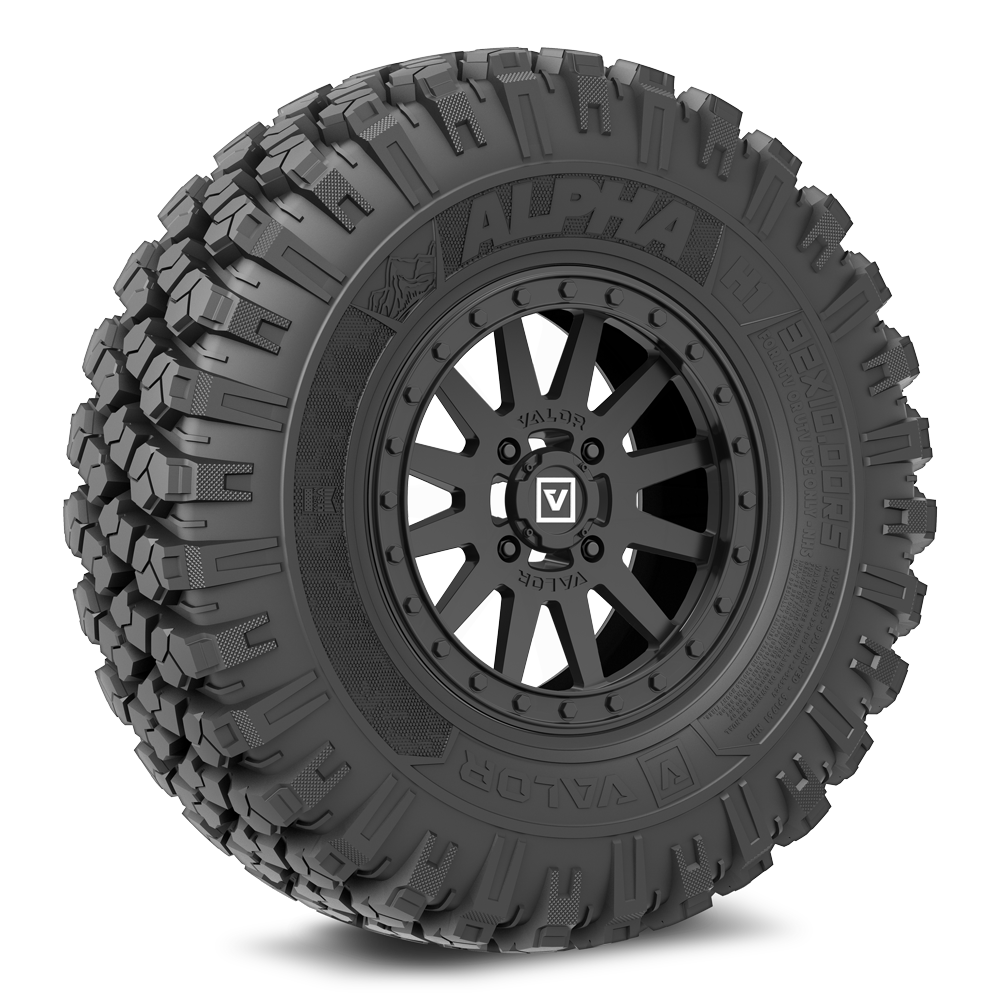

V05 UTV beadlock wheel on Toyo Open Country

Valor Offroad

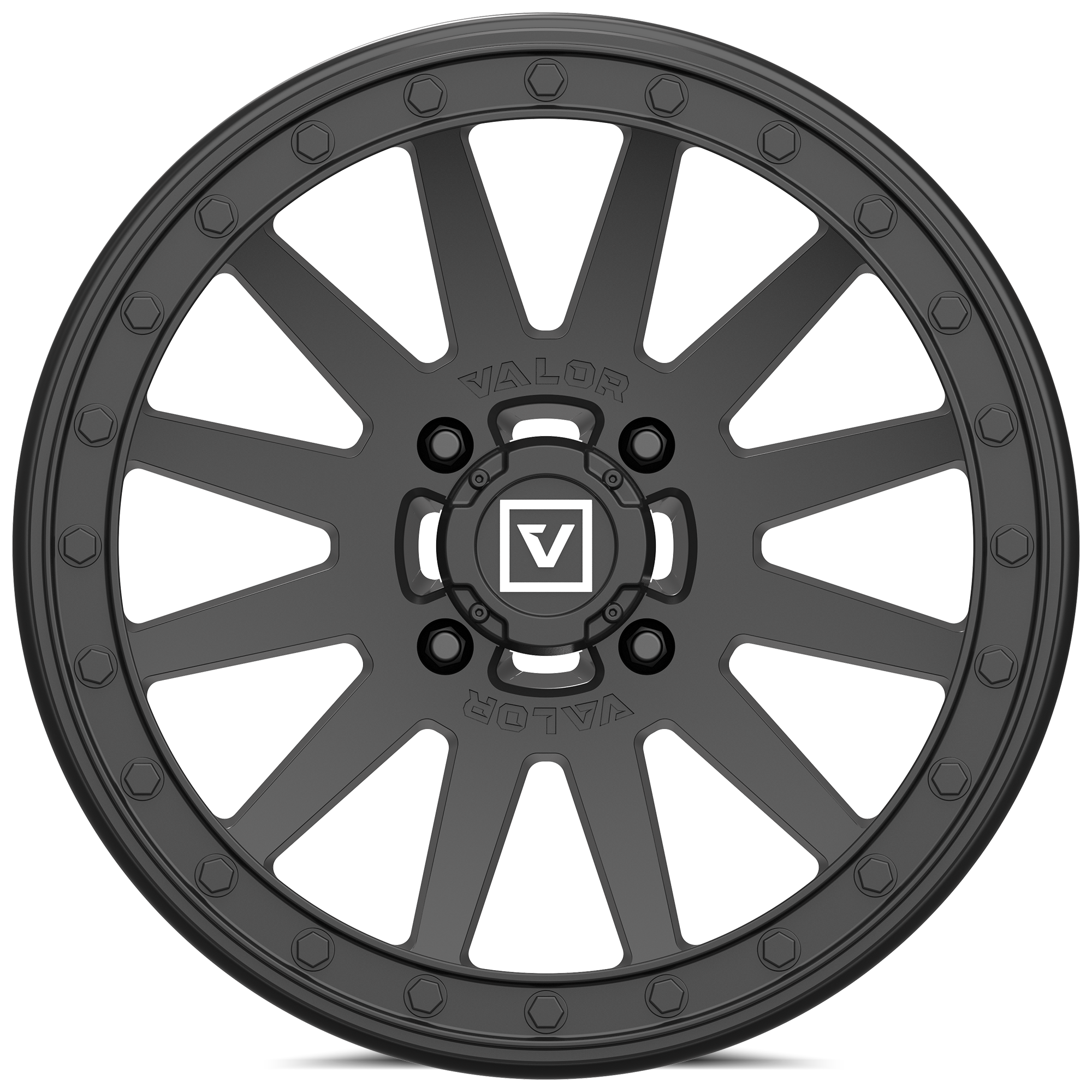

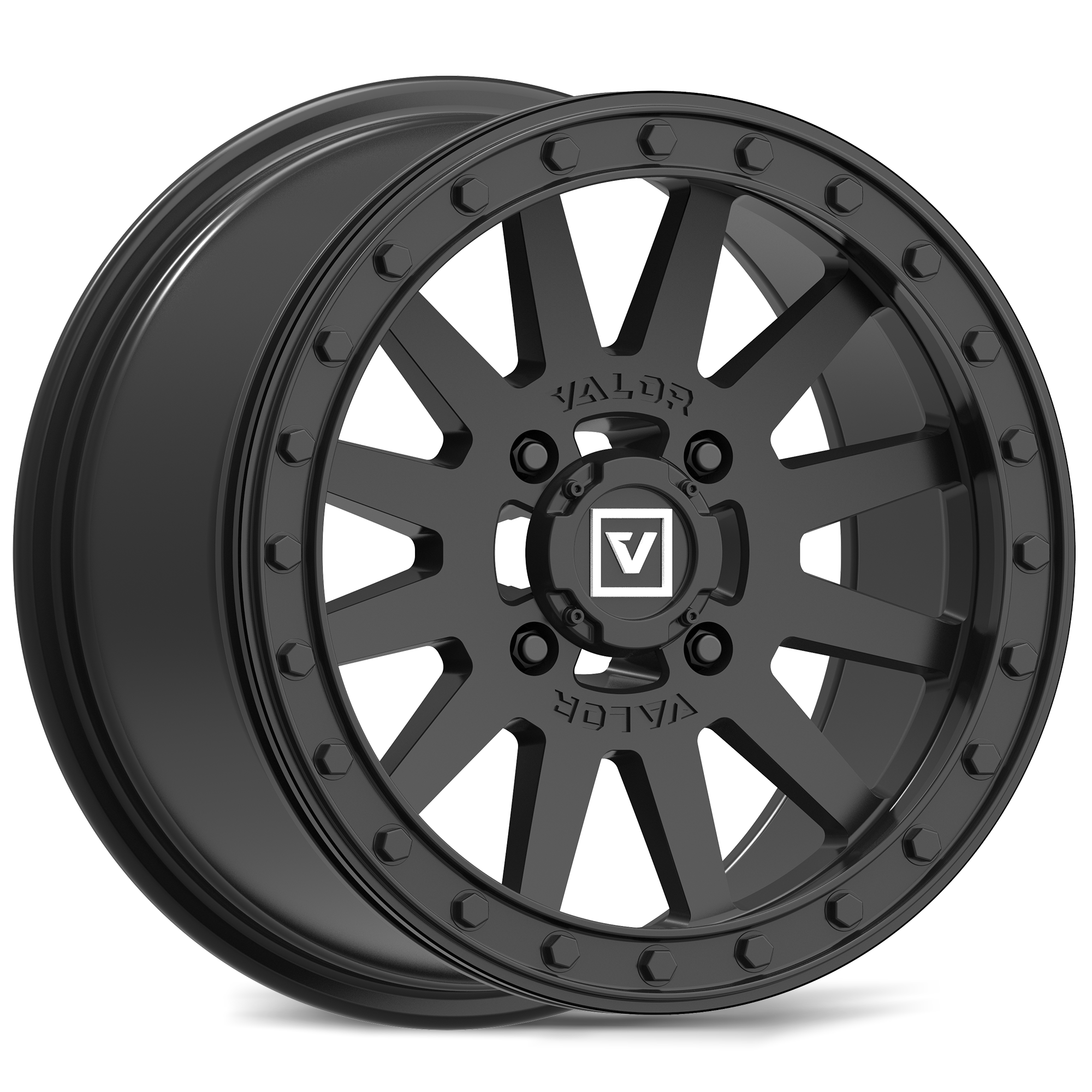

V05

Not all beadlock wheels are designed the same. When we set out to design the VO5, we knew weight needed to be a main objective. Weighing in at 13.83 lbs for the 14" and 14.82 lbs for the 15", the V05 is one of the lightest aluminum UTV beadlock wheels ever made.

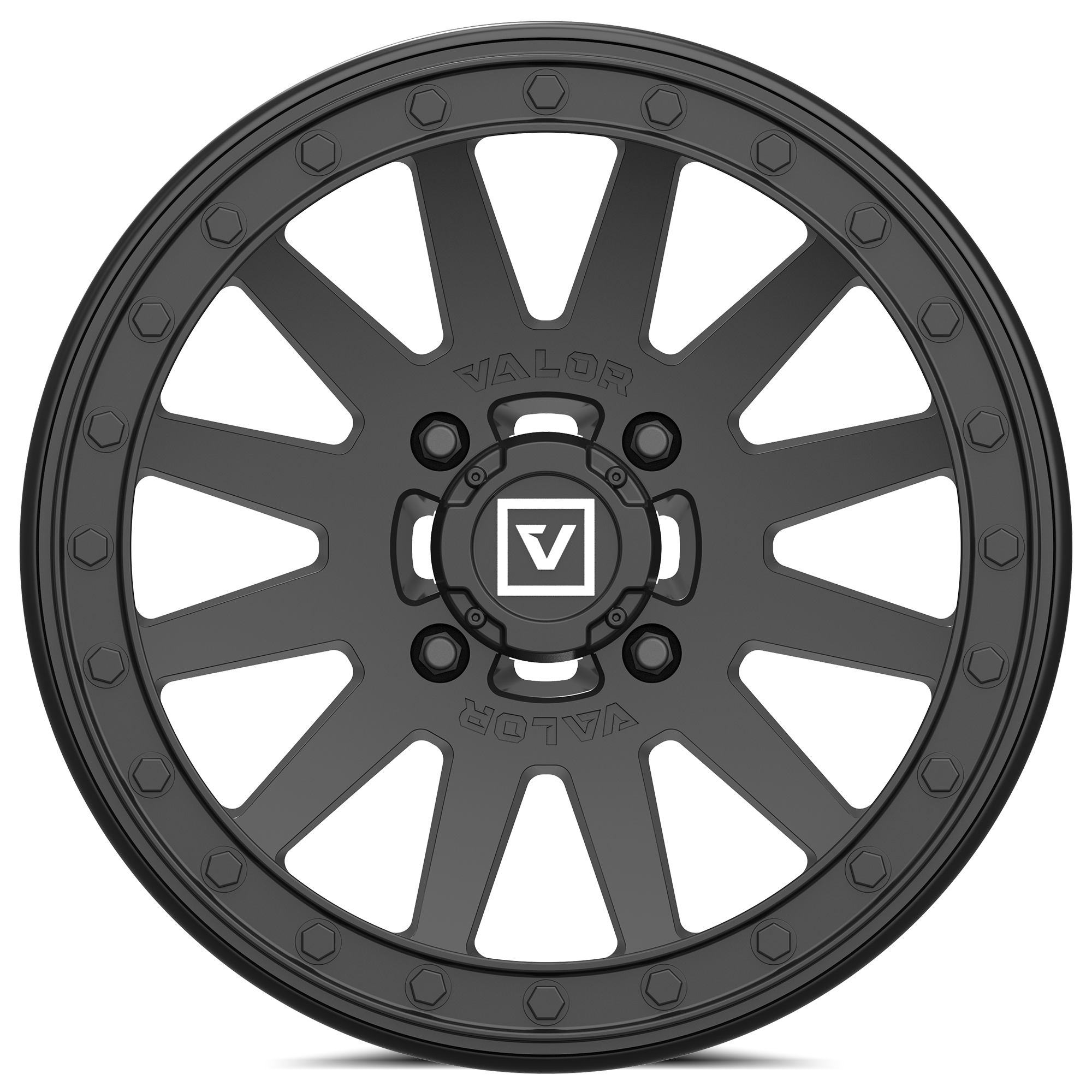

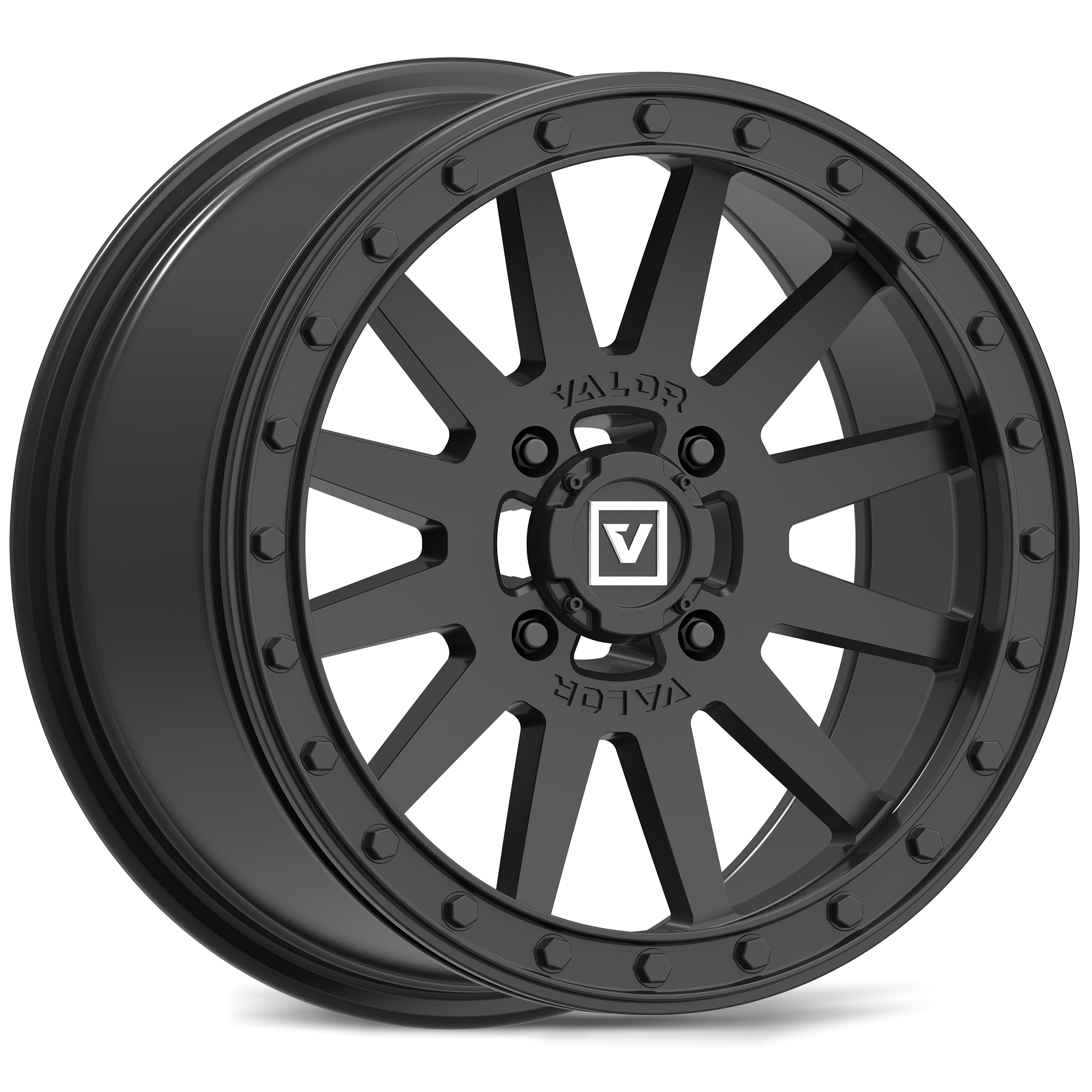

The V05 wheel is manufactured using only A356 aluminum with T6 heat treatment for one super strong wheel. Forged 6061 aluminum beadlock ring. Clean twelve spoke design with debossed VALOR logo. Offroad inspired and reinforced inner lip. Engineered to exceed SAE 2530 safety specifications. Bolt-on shorty center cap with embossed white logo.

INDUSTRY LEADING

LIGHT WEIGHT DESIGN

During the design phase, each Valor Offroad wheel is over-engineered to prevent unnecessary wear on your vehicle. The V05 is one of the lightest UTV specific wheels on the market today.

V05 14x7 = #13.83 lbs
V05 15x7 = #14.82 lbs

canam maverick x3 beadlock wheels red

V05 Detail

The V05 beadlock wheel and center cap are available in a semi-gloss satin black finish. The custom beadlock ring comes out of the box in a gloss black paint finish. Installation hardware is gloss black.

We take a lot of pride in designing products and finishes that will last you a lifetime of enjoyment. All Valor Offroad products undergo a barrage of brutal safety and quality assurance tests so that no matter where you ride, or whatever mother nature throws your way, we've got you covered.

Looking for a custom fitment or custom finish? Check out all of our Valor Offroad center caps here.

The V05 is available in 4x137, and 4x156.

Not sure whether this wheel will fit your UTV, SxS or ATV, or unsure what all of this bolt pattern noise is all about? Give us a call and we will make sure you're good to go. After hours? No problem, check out this handy wheel fitment guide that should help address most common fitments.

We have a blog post dedicated to showing you step by step instructions on how to mount your Valor Offroad V05 beadlock wheels. Check out the post here: How to install UTV beadlock wheels

Before airing your tires up, we recommend torquing each beadlock bolt to 15 ft lbs in a star pattern. Always use a quality torque wrench to ensure proper specification.

Each of our Valor Offroad wheel styles is carefully wrapped in just the right amount of protective material to ensure a safe trip from our warehouse to your door. We are hyper selective in our packaging design and shipping to remove any unnecessary or redundant packaging.

Unless noted, your cap will match the finish of the wheel selection. Each cap includes all necessary installation hardware and will come pre-installed. See all Valor Offroad center caps.

Need lug nuts (installation kit)? Check out our full assortment of UTV wheel installation kits here or check out our fitment guide to figure out what Installation Kit you need.

Example: V05-1470P3510SB

V05: Style Number
14: Wheel Diameter
70: Wheel Width (7")
P35: Positive (+)35mm Offset
10: Bolt Pattern (4x110)
SB: Satin Black Finish

14" WHEEL SPECS

Size: 14x7
Bolt Pattern: 4x137
Offset: +35mm (5+2)
Hub Bore: 112mm
Wheel Weight (LBS): 13.83
Max Load (LBS): 1000
Finish: Satin Black
Ring Finish: Gloss Black
Cap: VCAP1-SHORTSB

Size: 14x7
Bolt Pattern: 4x110
Offset: +35mm (5+2)
Hub Bore: 132mm
Wheel Weight (LBS): 13.83
Max Load (LBS): 1000
Finish: Satin Black
Ring Finish: Gloss Black
Cap: VCAP1-SHORTSB

15" WHEEL SPECS

Size: 15x7
Bolt Pattern: 4x137
Offset: +35mm (5+2)
Hub Bore: 112mm
Wheel Weight (LBS): 14.82
Max Load (LBS): 1000
Finish: Satin Black
Ring Finish: Gloss Black
Cap: VCAP1-SHORTSB

Size: 15x7
Bolt Pattern: 4x156
Offset: +35mm (5+2)
Hub Bore: 132mm
Wheel Weight (LBS): 14.82
Max Load (LBS): 1000
Finish: Satin Black
Ring Finish: Gloss Black
Cap: VCAP1-SHORTSB

Action utv desert dust dusty sand canam

TECHNICAL DETAIL

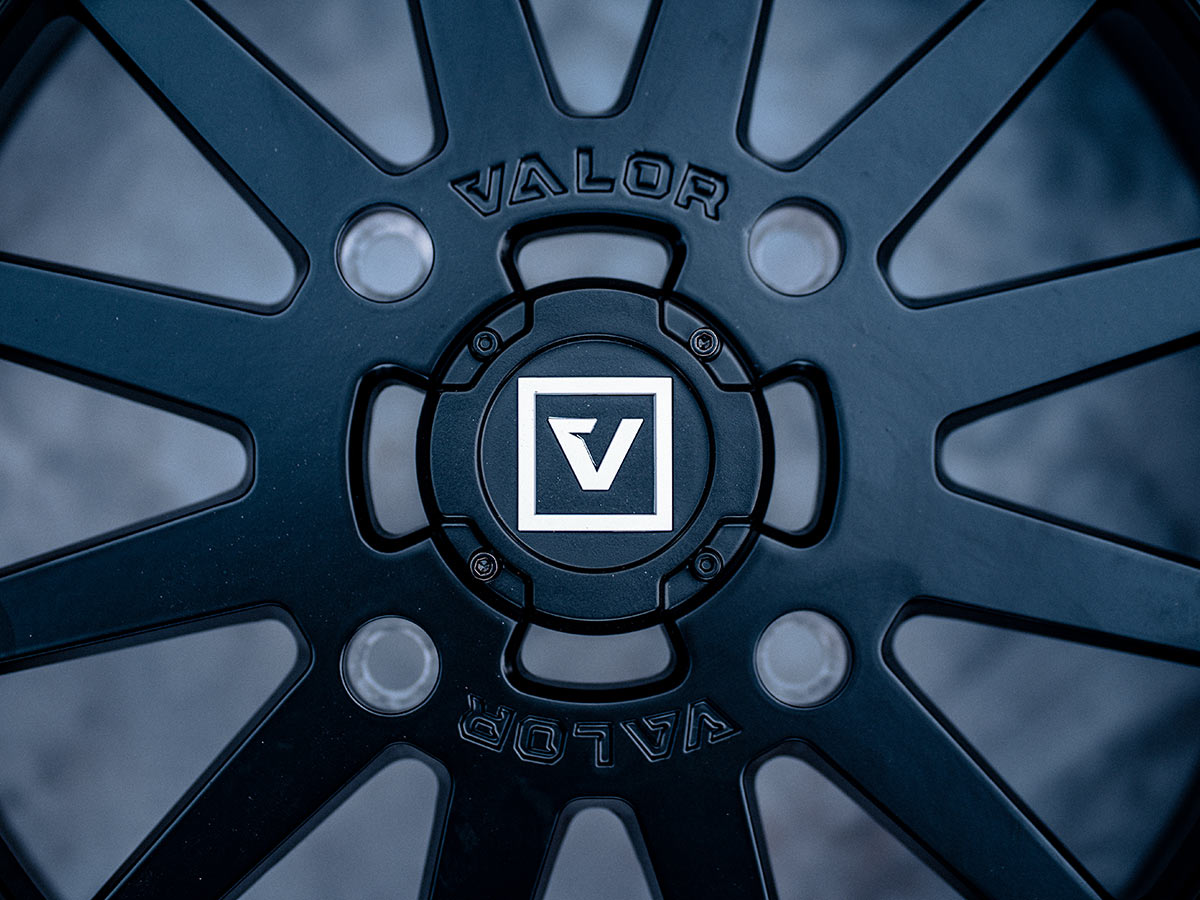

FInish

The V05 beadlock UTV wheel is available in satin black paint and matching cap with gloss black beadlock ring and gloss hardware.

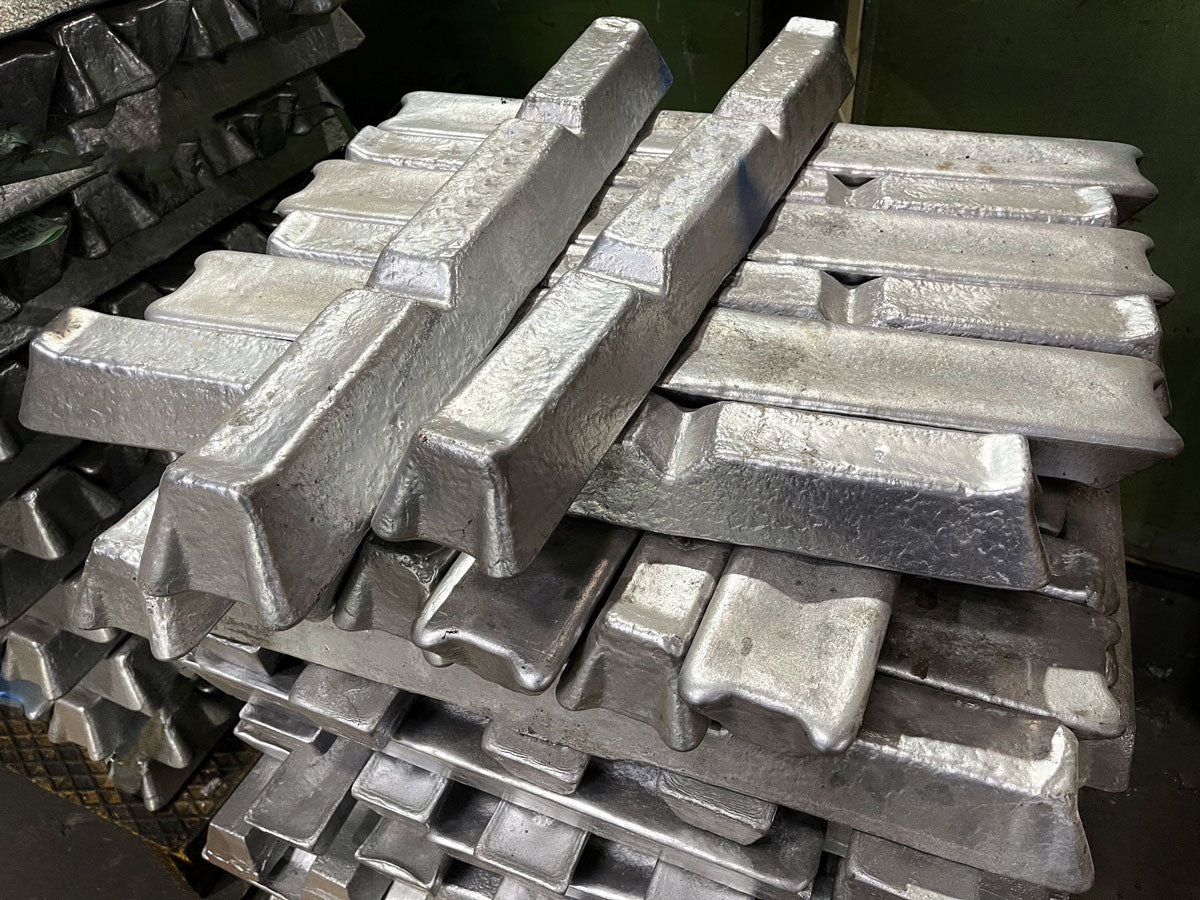

QUALITY

Manufactured using only A356 aluminum with T6 heat treatment for one super strong wheel. Engineered to exceed SAE 2530 safety specifications.

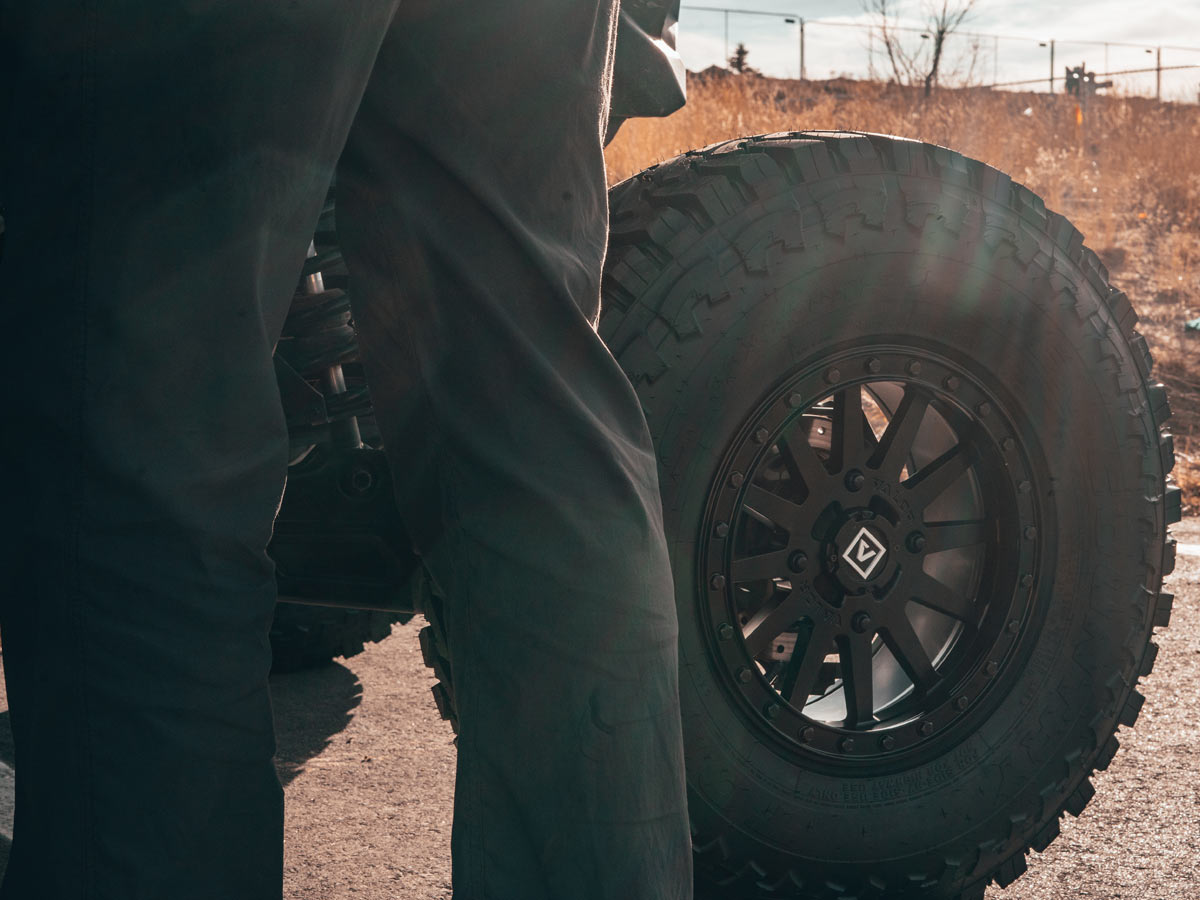

Design

Offroad inspired eight spoke design with debossed VALOR logo. Forged aluminum beadlock ring increases strength and sheds weight.

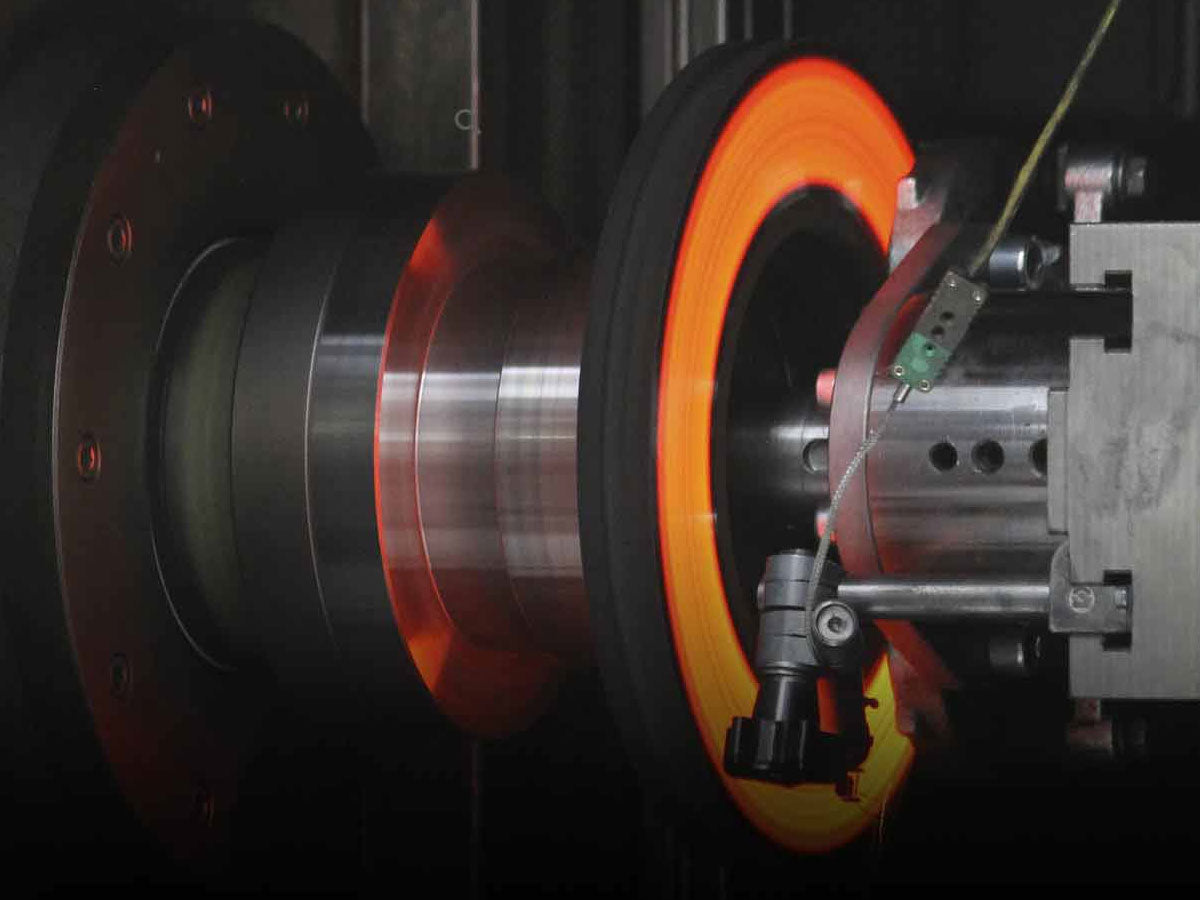

Safety

Strong 1000 lbs. load rating to ensure you get back to the trailhead or basecamp when you want to. Backed by a lifetime limited structural warranty.

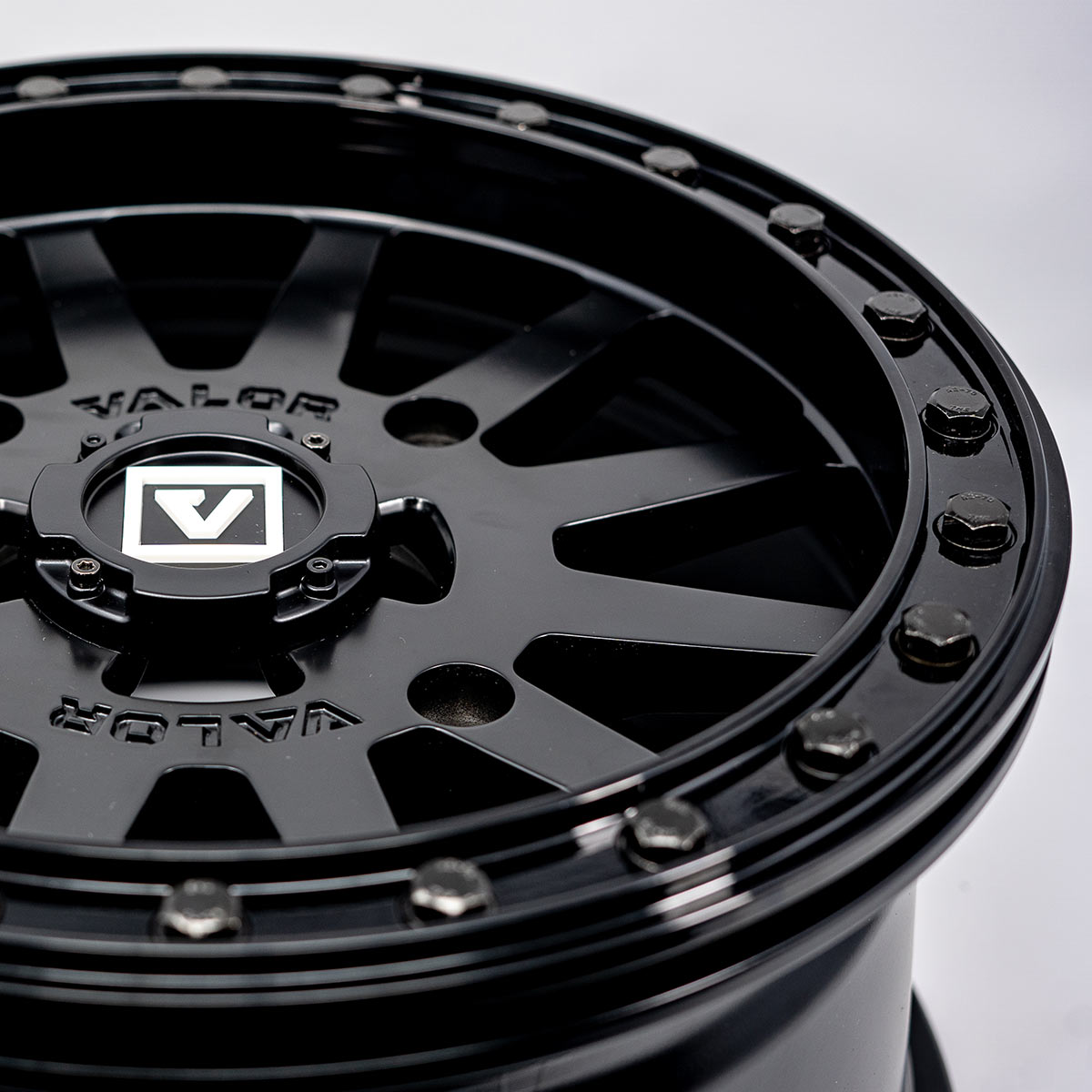

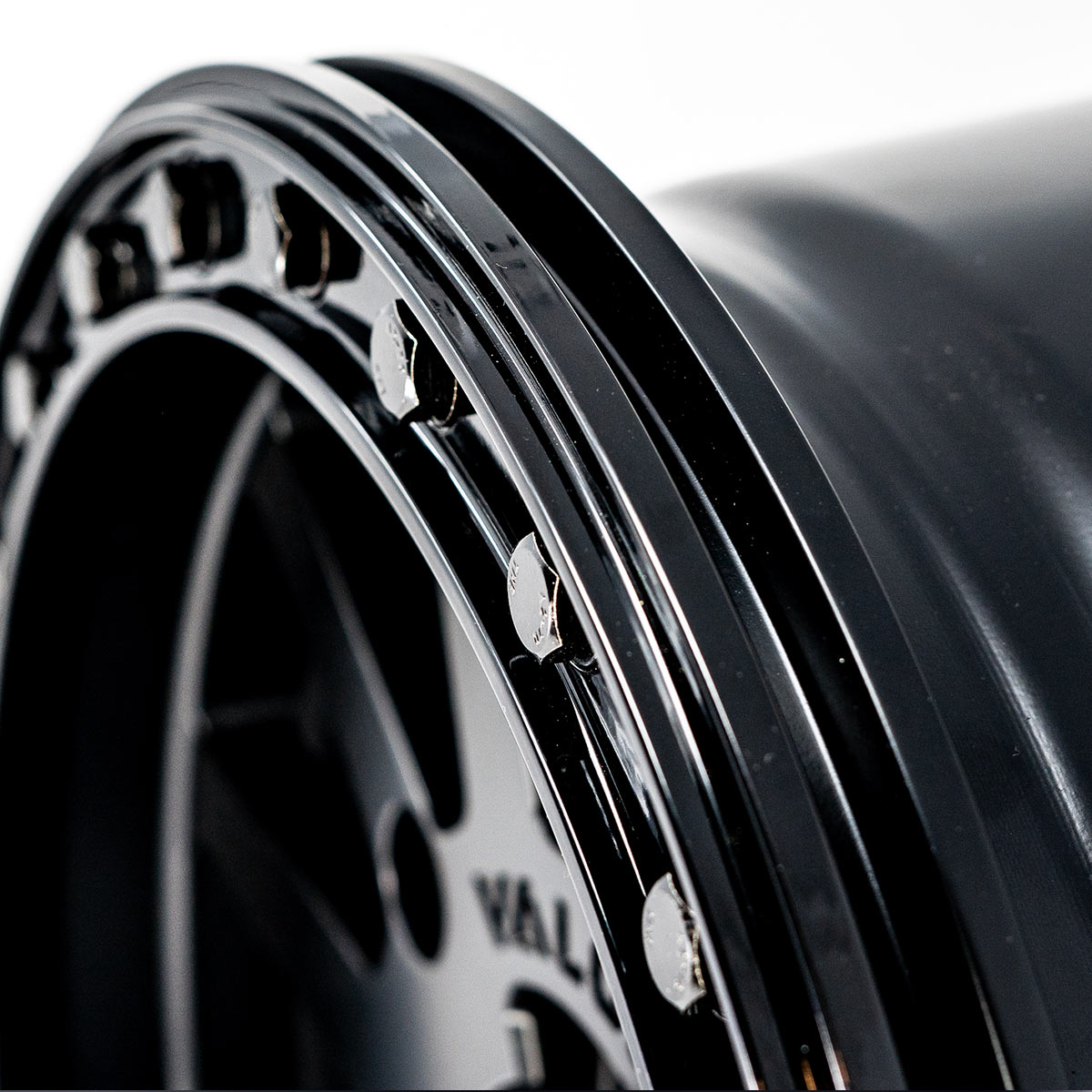

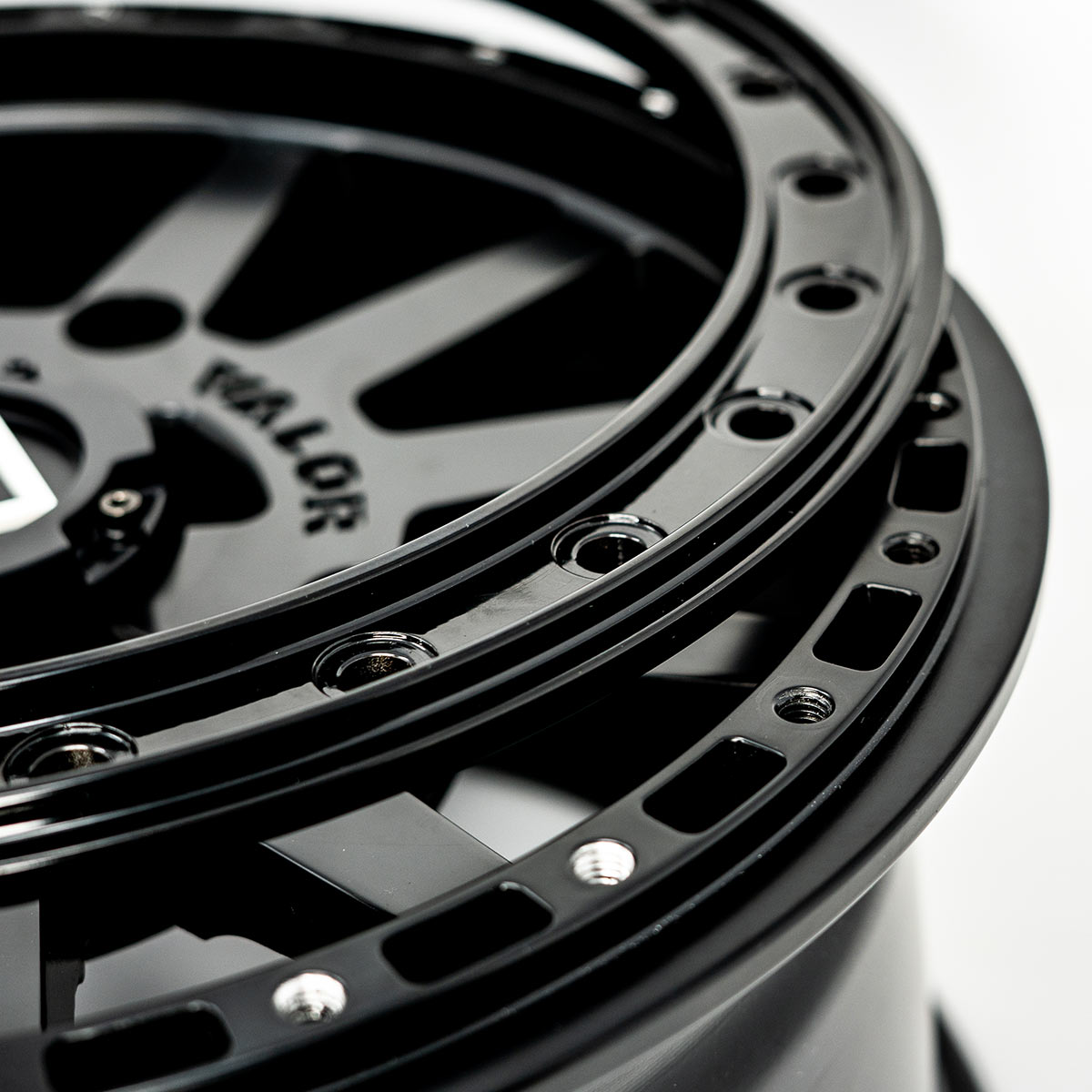

close up beadlock wheel on tire beadlock ring

Follow the hashtag

#VALORV05

BOLT-ON

SHORTY CAP

All Valor Offroad wheels comes stock with our industry first 15mm bolt-on shorty cap. Why run a bulky cap when you can have the shorty. We do offer a taller cap for those of you with special hub clearance needs, click below for our optional cap fitments.
